| Purpose |

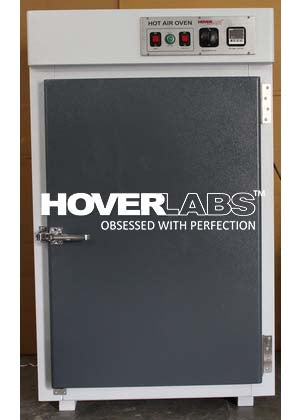

Hot Air Oven is commonly used for dry heat sterilization which is a method of controlling micro-organisms |
| Capacity in litres |
101-150 |
| Power ratings in watts |
3000 |
| Should provide 3 heating elements ob 3 sides of equioment to ensure uniform temperature on all shelves |
Yes |
| Ambient temperature range in ᵒC |
Ambient to 250ᵒC |
| Temperature Accuracy in ᵒC |
±1ᵒC |
| Insulation |
Glass wool |
| Controller |
Microprocessor based PID control |
| Type of Display |
LCD |
| Parameters displayed |
NA |
| Type of Temperature sensor |
PT 100 |
| Power supply |
230V, 50/60Hz |
| Door shall be insulated |
Yes |
| Door shall be fitted with heavy hinges |
Yes |
| Availability of Double glass window on door |
No |
| Door should have locking facility |
NA |
| Type of Shelves |
Removable |
| Number of shelves |
3 |
| Air Circulation |
Motorized Blower for forced air circulation |
| Blower Motor power in HP |
1/35 |
| Blower motor shall be totally enclosed |
Yes |
| Blower motor shall be air cooled |
NA |
| Weight in kgs |
85 |
| Length of power cord fitted with compatible Indian plug in meters |
2.5 |
| Operating temperature and humidity |
10 to 40 degree centigrade and 15-90% humidity |
| Over temperature protection |
Yes |
| Safety alarm system |
Yes |
| Instruction manual to be provided |
Yes |
| Oven should be corrosion resistant |
Yes |
| Warranty in Years |
3 |
