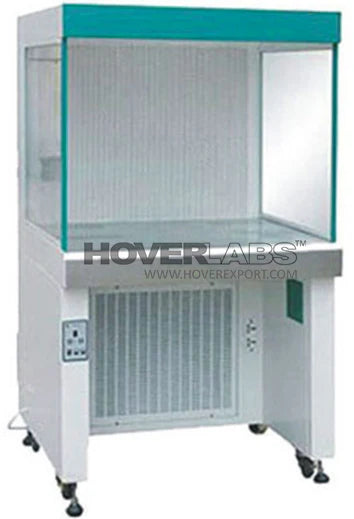

Laminar Air Flow (Model: HVS-LH322)

“HOVERLABS” Laminar Air Flow

(Model: HVS-LH322)

TECHNICAL SPECIFICATION:

We are one of the leading Manufacturers, Exporters of ‘HOVERLABS’ Laboratory & Scientific Equipment. ‘HOVERLABS’ Laminar Air Flows are made at our wide manufacturing unit, utilizing sophisticated techniques and amenities. These are specially designed for creation of continuous supply of positive pressure HEPA filtered Air, thus creating a dust free clean Air

• Construction: Horizontal, Freestanding, Benchtop, Outer chamber made of Heavy-Duty Mild Steel

• Sheet duly Powder Coated with Epoxy Paint, Working Table made of Stainless Steel 304.

• Size of the Working Area (W×D×H) (in feet): 3 x 2 x 2

• Size of HEPA Filter-3’x2’x6’’, No. of HEPA Filter-1, No. of Pre Filter-2, Illumination- 2x40w, U.V.

Germicidal Light-1x1.5 ft with spare UV tube.

• Working area of Laminar Air Flow Chamber illuminated by Fluorescent Light & UV Germicidal Lamp

Operated at 230V.

• Class 100 Air Cleanliness.

• Door & Side Covers are made from perplex sheet. Door can be rested at the top for convenience at

the time of operation.

• Two legs table top & two table supports are detachable & can be taken out & fixed within minutes.

• Laminar Air Flow Velocity (m/s): 0.45 to 0.65.

• Air changes per Hours: Min 30

• Fitted with Manometer for HEPA Filter Choking System.

• Noise Level: <65 dBA

• Hepa Filter: 99.99 % efficiency resulting in ceasing all air bourn molecule of particle up to 0.3

micron in working area of bench.

• Pre-Filter (washable) made of high-grade nylon net fixed in SS frame for first stage air purification

through blower system closed inner chamber.

• Highly efficient Blower fitted with ¼ HP balancing motor with 1200 to 1400rpm.

• Supplied Complete with Air/Gas cock and mains power socket (16A).

• Power Supply: 230 VAC, 50-60 Hz

INTERNAL CODE: - KD. 2293.25110
