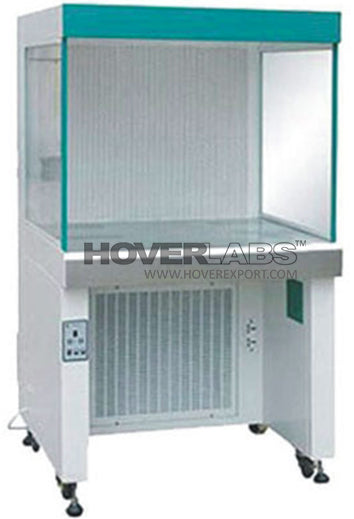

“HOVERLABS” LAMINAR AIR FLOW (Model: HVS- LH422)

“HOVERLABS” LAMINAR AIR FLOW

(Model: HVS- LH422)

We are one of the leading Manufacturers, Exporters of ‘HOVERLABS’ Laboratory & Scientific Equipment. ‘HOVERLABS’ Laminar Air Flows are made at our wide manufacturing unit, utilizing sophisticated techniques and amenities. These are specially designed for creation of continuous supply of positive pressure HEPA filtered Air, thus creating a dust free clean Air.

TECHNICAL SPECIFICATION:

•      Construction: Horizontal, Freestanding, Benchtop, Inner & Outer chamber made of Heavy Duty Mild Steel Sheet duly Powder Coated with Epoxy Paint.

•      The work table is made of thick board pasted in Stainless steel lined at top.

•      Size of the Working Area (W×D×H) (in feet): 4 x 2 x 2

•      Size of HEPA Filter-3’x2’x6’’, No. of HEPA Filter-1, No. of Pre Filter-1, Illumination-2x20w, U.V. Germicidal Light-1x1.5 ft.

•      Working area of Laminar Air Flow Chamber illuminated by Fluorescent Light & UV Germicidal Lamp Operated at 230V.

•      Class 100 Air Cleanliness.

•      Door & Side Covers are made from perplex sheet. Door can be rested at the top for convenience at the time of operation.

•      Two legs table top & two table supports are detachable & can be taken out & fixed within minutes.

•      Laminar Air Flow Velocity (m/s): 90 ±20 Feet / Minute.

•      Air changes per Hours: Min 30

•      Fitted with Manometer for HEPA Filter Choking System.

•      Noise Level: <60 dBA

•      Hepa Filter: 99.97 % efficiency resulting in ceasing all air bourn molecule of particle up to 0.3 micron in working area of bench.

•      Pre-Filter (washable) made of high grade nylon net fixed in SS frame for first stage air purification through blower system closed inner chamber.

•      Airflow Speed: PID Controller can control UV-ON OFF, UV Timer, Three Step Speed Controller (High, Medium & Low).

•      High efficient Blower fitted with ¼ HP balancing motor with 1200 to 1400rpm.

•      Supplied Complete with Air/Gas cock, Bunsen Burner & Neon Indicating Lamp and mains power socket (16A).

•      Power Supply: 230 VAC, 50-60 Hz

INTERNAL CODE: - KDSM.2259.24919
