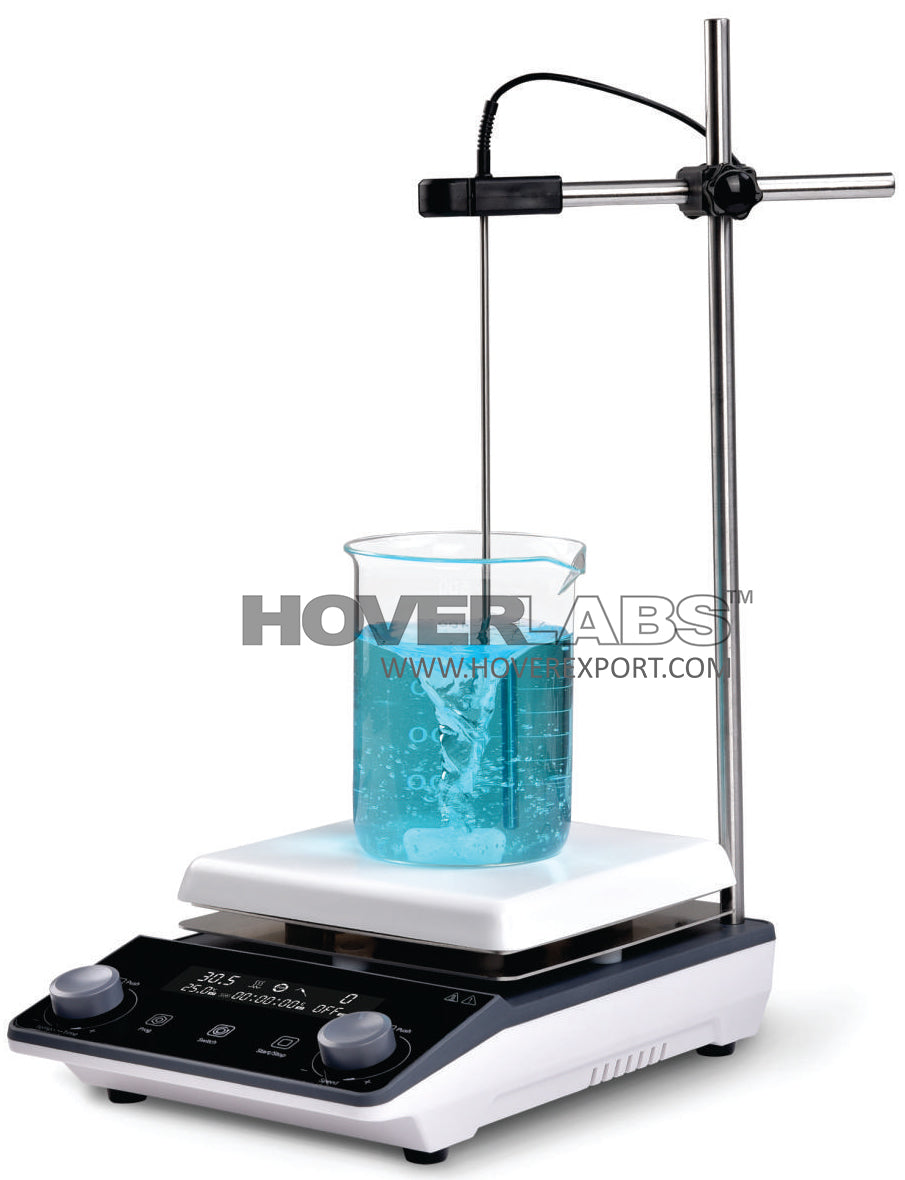

MAGNETIC STIRRERS’ HOT PLATES (Model: HV-88)

“HOVERLABS” MAGNETIC STIRRERS’ HOT PLATES

(Model: HV-88)

Magnetic Stirrer, mainly used for stirring or simultaneous heating and stirring low viscous liquid or solid liquid mixtures. The sample temperature can be heated and controlled according to the specific experimental requirements to maintain experimental required temperature condition to ensure liquid mixing.

TECHNICAL SPECIFICATION:

-Voltage V- 110-220

-Frequency Hz -50-60

-Power w- 550

-Working Plate Material-Cast Alu.+Ceramic

-Base Material-Plastic

-Working Size mm -150 x150

-Max Stirring Volume L- 5

-Heating Function-Yes

-Display Mode-LCD

-Motor Type- DC Brushless Motor

-Speed Range rpm -100-1600

-Speed Control Accuracy rpm- ±10

-Timing -1-99 h 59min

-Temperature Control Range °C -RT-300

-Temperature Control Accuracy °C -Tray±3, Sol. ±5

-PT 1000- Standard

PRODUCT FEATURES: -

- Backlit LCD display set and current values, clear and intuitive

- DC brushless motor, stepless speed adjustable encoder, low noise, maintenance-free, smooth

operation

- A variety of operating modes ensure that the stirring function does not change due to external factors

- With positive and inversion function and program editing function, positive & reverse switching,

temp switch can be achieved, fully stirring

- Hight temp resistant strong magnetic steel to ensure sufficient suction force and torque, stirring

effect is significant

INTERNAL CODE: - KDSM.HV-8691-24221
