“HOVERLABS” Paper Chromatography (Model: HV-10)

“HOVERLABS” Paper Chromatography

 (Model: HV-10)

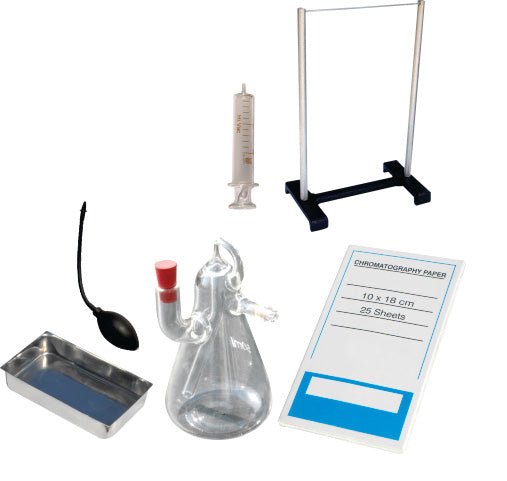

Technical Specification:

- Paper Chromatography Cabinet: It is made of single piece Bakelite moulding. The inner size of cabinet is 6" x 8" x 9" with front sliding glass door. The lid of cabinet is also made of Bakelite.

- Stainless Steel Solvent Pot: It is made of 316 Quality S.S. It is having the volume capacity of 150 ml. It is required to hold the solvent mixture.

- Stainless Steel Hanger: It is a stainless-Steel rod of size 6" and dia 2mm. It is used as hanger of Chromatography paper. It fits inside the grooves of the cabinet.

- Chromatography Paper "1-Chro": It is the world standard Chromatography paper. A smooth surface, 0.18mm thick with

 linear flow rate (water) of 130 mm/30 min. good resolution for general analytical Separation and having following special features.

* Simultaneous development of multiple samples on the same sheet under identical conditions.

* Sequential development of the same sample with solvent or different concentrations of the same solvent.

* Suitability for two-dimensional chromatography (change in direction of the solvent front) with possible improved resolution.

- Drying Stand: One stand is supplied to accommodate processed (wet) Chromatography Paper and to put it in oven to dry the same.

- Glass Sprayer with Rubber Balloon: The sprayer is made of Borosilicate Glass, specially designed for spraying the indicators on Chromatography Paper. A rubber balloon is connected to it.

- Glass Syringe: Glass syringe capacity 20ml. is provided to draw the solvent from S.S. Pot after practical is over.

- TLC Capillary: Pkt. of 25 high quality fine capillaries are supplied with cabinet.

INTERNAL CODE: - KD. 12-1-2-25-9-14-4-9-1
