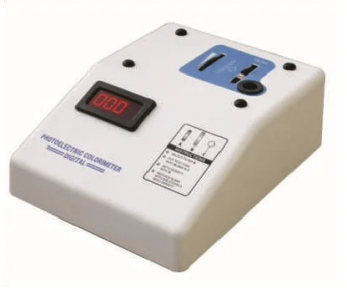

PHOTOELECTRIC COLORIMETER TM (Digital) (Model: HVL-100)

“HOVERLABS” PHOTOELECTRIC COLORIMETER TM (Digital)

(Model: HVL-100)

Haemoglobinometer (Sahli's)

Our Model is the finest Photoelectric Colorimeter that combine convience in operation with high precision & accuracy in analysis. The result in the form of optical density transmission is available on the display. Eight imported optical glass filters covering complete visible range of 400 - 700nm are mounted on a rotating disc. Its all-imported filters make it highly accurate as per international standards. Highly sensitive photo sensor & use of latest IC technology makes the instrument highly rugged, and economical in maintenance. A minimum sample volume of 1ml is required to carry out the analysis. Provision has been made to switch on the lamp source only when required, thereby increasing the life of the photodiode.

Technical Specifications:

▸ Filters: 8 (All High-Quality Optical Glass Filters)

▸ Filters Range: 400, 480, 510, 520, 540, 580, 620, 700(nm)

▸ Min. Volume: 1 ml.

▸ Display: 2 1/2-digit LED

▸ Range: 400-700nm

▸ Output: OD: 0 to 1.99

▸ Resolution: OD: 0.01

▸ Accuracy: 0.5%FS+ 1 Digit

▸ Detector: Hermetically Sealed Imported Photodiode

▸ Light Source: Imported White LED

▸ Power: 230V+10% AC, 50Hz

▸ Dimensions: L-33cm x W-30cm x H-16.5cm (approx.)

▸ Weight: 1.5 Kg. (approx.)

▸ Accessories: (I) Test Tube (ii) Test Tube Stand (iii) Instruction Manual
