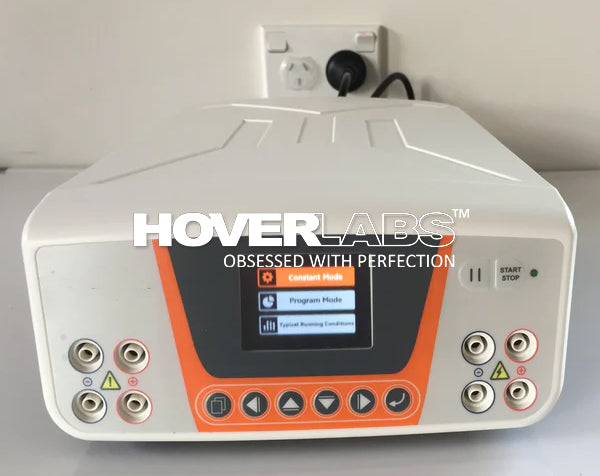

POWER PACK (BASIC POWER SUPPLY) (Model: HVS-P10)

“HOVERLABS” POWER PACK (BASIC POWER SUPPLY)

(Model: HVS-P10)

HOVERLABS offers power supplies constructed with microprocessor controller and 4 pairs of outlet terminals which covers the broadest range of application in general laboratory. The microprocessor control can perform either continuous or timed output, and user is able to pause and resume anytime without resetting the timer. HVS-P10 Power Supply is power enough to perform horizontal and vertical electrophoresis as well as two-dimensional electrophoresis SDS-PAGE applications. In addition, it can operate with a fully programmable mode and offer up to 6 multi-step setting conditions. The 2.4” TFT-LCD colored screen also allows you to see all the running/setting conditions while operating. For those beginners in electrophoresis, the built-in data for some typical running condition could be extremely helpful. These models are designed with great safety features to ensure safety of the lab and experiment.

TECHNICAL SPECIFICATION:

Model HVS-P10

Output Voltage / Inc. 5 - 300V / 1V

Output Current / Inc. 1 - 700mA / 1mA

Power- 150W

Rated Voltage -100-240V~; 47-60Hz

Type Of Output

1. Voltage or Current with automatic crossover

2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run

(later could be changed by user)

Program Storage 30 programmed files

Program Multi-Step Up to 6 steps

Editable Program Function 1. Typical running conditions program

2.Manual editable program

Display 2.4” TFT

Control Microprocessor controller

Safety Device-

No Load detects

Leakage detects

Over temperature protection

Over load detection

Sudden load change detection (could be enabled by proper setting)

Shrouded plugs and sockets

Timer Constant: 9999 (min) with alarm / continuous

Program: 999 (min) with alarm / continuous

Crossover YES

Stackable YES

Automatic Recovery After Power Failure YES

Operating Temperature 4oC- 40oC

Construction Material PC housing and flame-retardant ABS faceplate

Dimension (WxLxH) Approx. 8.5"x13.2"x4.1" (215x335x104mm)

Weight Approx. 4.6lb (2.1kg)

Features

• Four pairs of output terminals

• 2.4” TFT-LCD coloured screen shows all parameters during operation

• Timer with alarm function

• Compact size with stackable case

• Constant voltage/ current/ power operation mode

• Typical running condition helps electrophoresis beginner

• Wide application for DNA, RNA and protein electrophoresis and blotting

• Advanced safety device design

• Universal rated voltage for worldwide distributions

INTERNAL CODE: - KDSM.2273.241118
