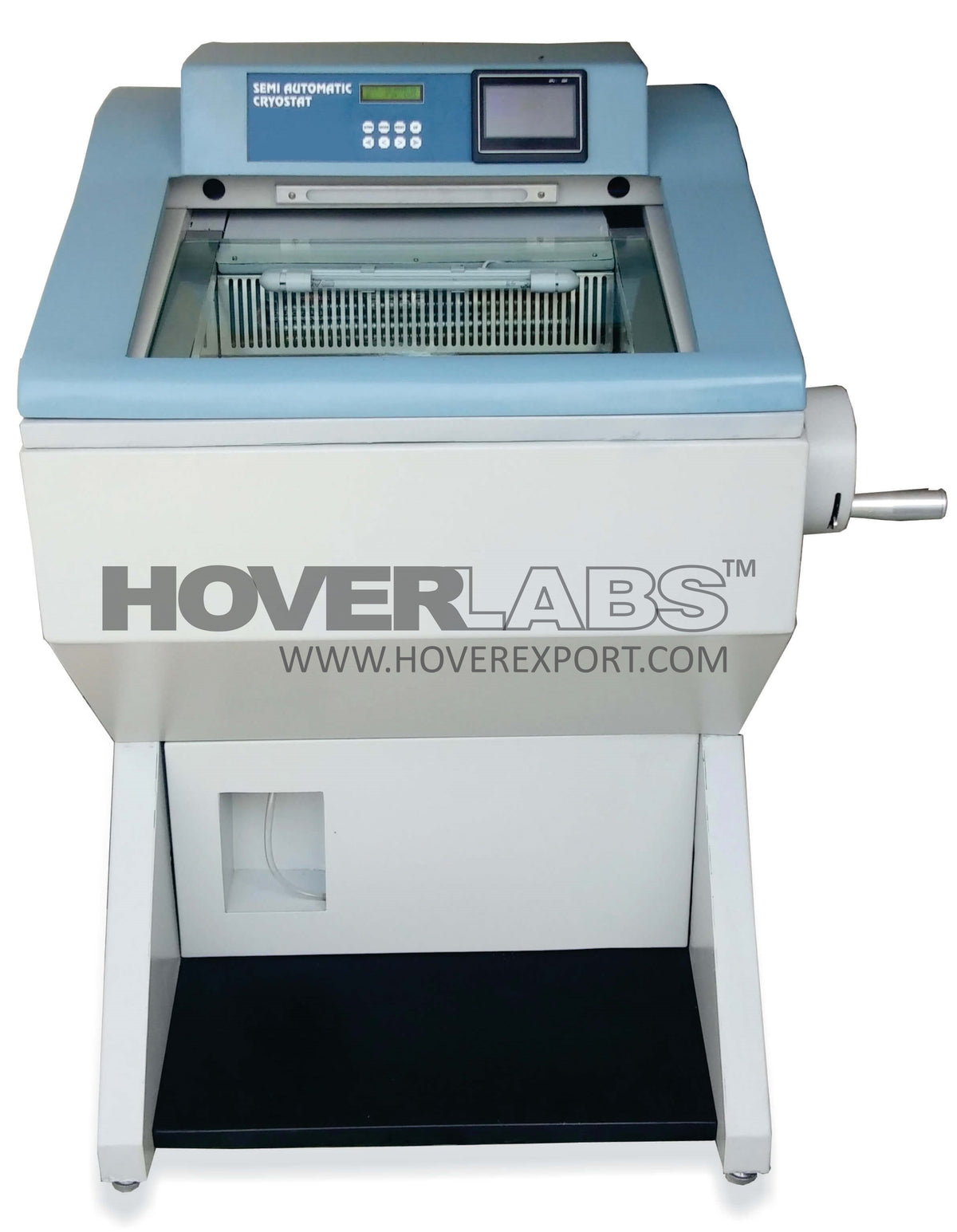

HOVERLABS Semi Automatic Cryostat

Model No. HV-HSM-1090SCM

HOVERLABS SEMI-AUTOMATIC CRYOSTAT

SPECIAL FEATURES :

• Motorized Feed Drive.
• Dual Compressor for rapid freezing.
• Arbitrary Switching between trimming & Sectioning.
• Adjustable cutting angle.
• Portable with 4 castors.
• UV Sterilization.
• Automatic and manual defrosting.
• Blade Holder for finger safety.
• Enclosed drainage system.
• Anti-roll device.
• Section counter.
• Frost free encapsulated microtome assembly.
• Visible operating parameters at all times.
• User friendly control panel.

TECHNICAL SPECIFICATIONS:

Section Thickness Range  :1µm-60µm

Setting Values: 1µm-10µm in 1µm increments.

10µm-20µm in 2µm increments

20µm-60µm in 5µm increments.

Trimming Thickness Range  :10µm-100µm in  10 µm increments.

Minimum Setting Value: 1µm

Vertical stroke: 65mm

Specimen horizontal feed: 25mm

Motorized coarse feed: 480 µm/sec.

Specimen Orientation: x- and y-axes   : universal 8o

Cryo Chamber Temp: -1 to 30^oC Adjustable.

Cooling Downtime to -30^oC.

Max. Specimen size             : 35x35mm.

Quick Freeze Shelf: < – 50^oC

Chamber Defrosting: Programmable or manual.

Lowest Temp. of Peltier Unit: – 50^oC.

No. of Freezing Stations: 10.

Voltage: 220V.
