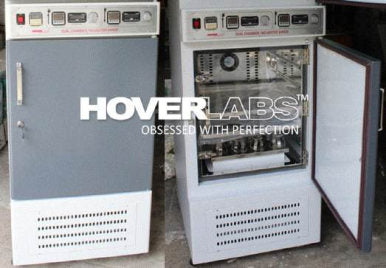

Shaking Incubator (Non-Refrigerated) (Model: HVS-256A)

“HOVERLABS” Shaking Incubator (Non-Refrigerated)

(Model: HVS-256A)

TECHNICAL SPECIFICATION:

- Construction & Design

- Double-walled chamber ensuring excellent thermal efficiency and minimal heat loss.

- Inner Chamber: Fabricated from polished stainless steel (SS-304), offering high corrosion resistance and easy cleaning.

- Outer Body: Constructed from heavy-gauge mild steel with a durable powder-coated finish for protection and aesthetic appeal.

- Insulation: High-grade insulation maintains uniform internal conditions and reduces energy consumption.

- Door: Fitted with a transparent plexiglass/toughened glass viewing window, enabling observation of samples without disturbing the chamber environment.

- Air Circulation: A powerful air-circulating fan ensures uniform temperature distribution throughout the chamber.

- Temperature Control System

- Temperature Range: From ambient + 5°C to 60°C.

- Control Mechanism: Microprocessor-based digital temperature indicator-cum-controller offering precision, stability, and clear digital display. Shaking Mechanism

- Motion Type: Smooth orbital shaking driven by a brushless induction motor or variable speed drive for vibration-free, noiseless operation.

- Speed Control: Adjustable shaking speed to accommodate a wide variety of experimental protocols.

- Platform: Equipped with adjustable clamps capable of holding flasks of multiple capacities.

- Capacity: Suitable for approximately 24 flasks (or equivalent) on a single platform.

Power & Safety

Power Supply: 220-240 V AC, 50 Hz, single phase.

Safety Features:

- Over-temperature protection system.

- Door safety interlock to ensure operator safety during operation.

Optional Accessories

- Additional platform compatible with different flask sizes.

- Digital timer for programmable shaking and incubation cycles.

- Chamber illumination through fluorescent tubes (2 Nos.).

- Ultraviolet (UV) chamber illumination (2 Nos.).

- 0–24-hour cyclic timer for illumination control.

- Automatic voltage stabilizer (3 KVA) for protection against electrical fluctuations.

INTERNAL CODE: - KD. 2371.251118
