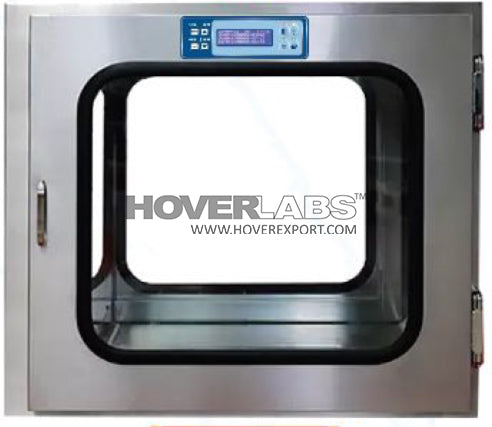

“HOVERLABS” STATIC PASS BOX (Model: HVS – PB02)

“HOVERLABS” STATIC PASS BOX

(Model: HVS – PB02)

"Pass Box" Is one of the clean room systems which is used to transfer material from one side to other side through controlled environment in order to avoid airborne cross contamination. Interlocking door mechanism is the prime feature of A pass box, when door at one side is open the door at other side remains closed. We are manufacturing ISO certified pass box in India. Our pass box delivers low noise, easy to use operation & rugged construction promises long service life. A pass box is designed in two different types; dynamic pass box & static pass box it is the user’s specific requirement which decides the right design configuration.

TECHNICAL SPECIFICATION:

• Cabinet Construction Stainless Steel 304 grade.

• Door Double door with Glass View Panel. Perfectly calibrated interlocking system to operate the doors. Electromagnetic interlocking to ensure only one side door will be opened at a time.

• Window material Tempered Glass.

• Buzzer and Indicator lamps.

• Fitted with S.S Handles & S.S Hinges.

• 15 W, make Philips Holland.

• Illumination 20 W, make Phillips Holland.

• Electricals: Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking,

• HEPA Filter Standard.

• Filtration efficiency: ≥ 99.99% @ ≥ 0.3μm.

• Working Area Dimensions: 75 x 60 x 60 cm.

• Power Supply 220 / 230 Volts Single Phase.

INTERNAL CODE: - KDSM.HV-8691-24221
