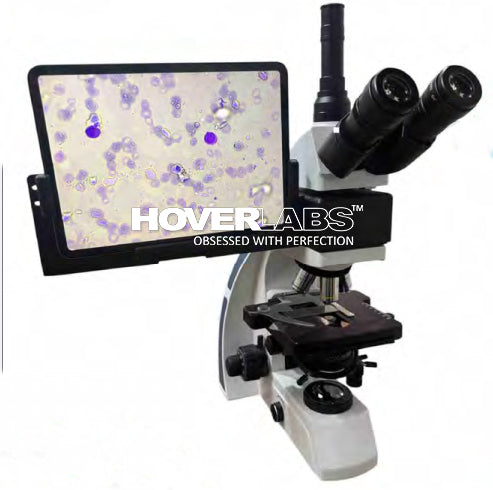

“HOVERLABS” Trinocular Microscope
(Model: HVS-TM150)
TECHNICAL SPECIFICATION:
• Microscope should be Upright bright field digital benchtop microscope with tablet / other attachment at trinocular port making it compatible with any tablet / External Desktop Screen with high quality optics.
• Head Seidentopf Trinocular Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, Light Split Switch E100:PO/E20:P80, Eyepiece Tube Dia.30mm.
• Eyepiece WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
• Detachable digital attachment with Internal magnification 10X/20.
• Allow simultaneous viewing through binocular eyepieces and on tablet display for capture of 100% circular field of view through the smartphone/tablet camera.
• Provision of upgradation of Microscope into Fluorescence, dark field, phase contrast 10x 20x 40x and with polarizer analyzer.
• Captured FoV: 5 mm with 4x objective, 2 mm with 10x objective, 0.5 mm with 40x objective and 0.2 mm with 100x objective.
• Four high contrast Premium infinity corrected plan-achromate objective lenses 4X/0.10W.D (12.1mm), 10x/0.25 W.D.(4.64mm) 40X/0.65 W.D.(0.65mm) and 100X/1.25 (Oil) W. D. (0.12 mm)
• Nosepiece Quintuple, Backward, High Precision Inner Position Stop Click.
• Coaxial Coarse & Fine Focusing on both sides, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
• Rackless (Integrated) Mechanical Stage, Size 182x140mm, Travel Range 77×52mm, Double Slide Holder.
• Swing-out Condenser, N.A.0.9/0.13, Iris Diaphragm
• Kohler Illumination, 3W LED, Brightness Adjustable
• Desktop/laptop attachment with HD display
• Pre-installed application with features like Report printing with images, Local syncing of images at desktop, Data management, Image capturing, Video recording, Exposure, brightness, saturation, temperature and contrast. control, Micrometry - linear and circular measurements in microns, Annotations and text addition, Free hand marking and pointer for demonstration
INTERNAL CODE: - KD. T-2347.2588
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
