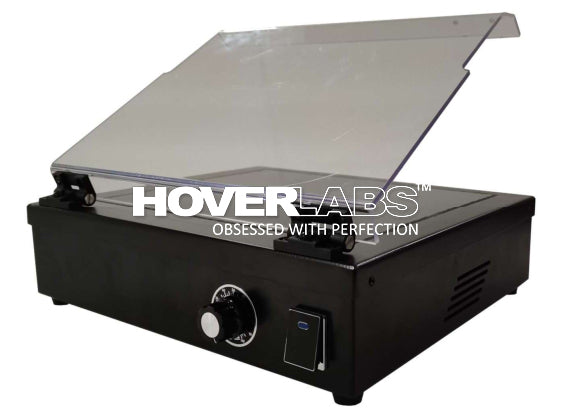

UV TRANSILLUMINATOR (Model: HVS-T200)

“HOVERLABS” UV TRANSILLUMINATOR

(Model: HVS-T200)

The HVS-T200 UV Transilluminator can be used for the result observation and gel cutting operation of nucleic acid (DNA/RNA) gel electrophoresis.The dual wavelength model (HVS-T200) is equipped with 302nm and 365nm UV tubes as standard.The fluorescence of EB was stimulated by 302n UV with high sensitivity and clear observation band. The detection sensitivity is as low as ng level.

The instruments are widely used in scientific research institutes and enterprises in the fields of molecular biology, molecular genetics, medicine and health, biological products, agriculture and other life sciences.

TECHNICAL SPECIFICATION:

1. Transmission area：215x265(mm)

2. Dual wavelength：302nm、365nn

3. Intensity：adjustable light intensity

4. Toughened glass surface

5. UV protection shield

6. Size：330x280x115mm

7. Input Voltage (V) 220, Selection of Intensity Variable Intensity

8. Weight of equipment, kg (kg)3.5

9. No. of UV Tubes (Nos) 6

Features

The UV protection plate can be adjusted and fixed at any angle to provide UV protection without affecting the observation.

The dual wavelength model can satisfy the different needs of users. The 302nm UV is suitable for the observation and analysis of DNA / RNA, while the 365nm UV is suitable for the preparation of observation and cutting bands to reduce the damage to the samples.

A UV shield can protect users away from UV damage.

It can shut down automatically to protect themselves.
