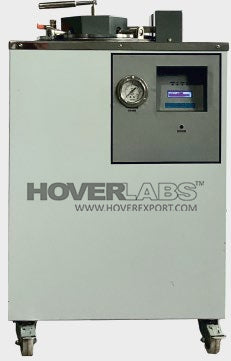

“HOVERLABS” VERTICAL AUTOCLAVE (Model: HVS-VA909)

“HOVERLABS” VERTICAL AUTOCLAVE

(Model: HVS-VA909)

‘HOVERLABS’ Single Lever Fully Automatic Top Loading Model ‘HVS-VA909 Fully Automatic Autoclaves’ are offered with a unique single lever lock for the lid. These autoclaves are offered in 5 different sizes from 35 to 180 liters. These Fully Automatic Autoclaves have customized microprocessor-based control systems which ensure required sterilization accuracy, repeatability & safety.

TECHNICAL SPECIFICATION:

• Vertical Double Walled Single Lever Autoclave with Silicone Gasket

• Inner Dimension: - 350 × 550mm

• Overall Capacity: 64 Liter

• Working Capacity: 53 Liter

• Load: 3.0 kw

• Temperature Range: 121˚C up to 135 ˚C

• Temperature Accuracy: ± 1˚C

• Pressure Range: 0 to 21 PSI or 0 to 30 PSI

• Pressure Accuracy: ± 1/2 PSI

• Display: Jumbo LCD 20x 4 with real time cycle information

• INCLUDING:

• 1. Vacuum breaker.

• 2. Water level indicator.

• 3. Stainless steel basket

• 4. Automatic low water cut off system

• 5. Pressure control switch

• 6. Control: ON/OFF / T.P.

• Input: PT-100 Pressure Sensor for chamber.

• Purging Range: User Settable.

• Sterilization Time: User Settable.

• Post Sterilization-Drying Time: User Settable.

• Boiler Control: User Settable.

• Buzzer: High / Low Alarm/Process End.

• Pressure Display.

• Sterilization cycle process inbuilt

INTERNAL CODE: - KDSM. HV-2252-24823
