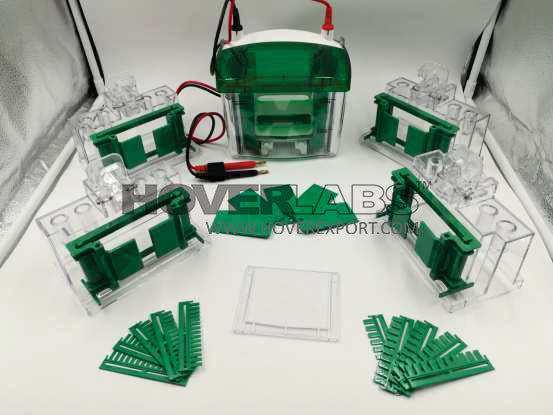

VERTICAL ELECTROPHORESIS UNIT WITH ACCESSORIES (Model: HVS-VEP03)

“HOVERLABS” VERTICAL ELECTROPHORESIS UNIT WITH ACCESSORIES

(Model: HVS-VEP03)

•  The Mini P-4 Cell has set the new standard for Mini Vertical Electrophoresis: Easier to assemble, leakproof, and with a four-gel capacity that doubles the output of the traditional cell, the Mini P-4 cell combines traditional features with higher throughput and even greater reliability.

•  Modular Cells for Many Applications Interchangeable modules easily convert a Mini P-4 cell from one application to another. Each module fits into the same buffer tank and lid to form a complete cell.

•  The modular configurations are: Mini P-4 electrophoresis cell — for running handcast or precast PAGE gel and (SDS)-PAGE gels Mini TBC electrophoretic transfer cell for western blotting

•  The Mini-P-4 cell is ideal for your vertical mini gel electrophoresis needs. Easy to use,easy to assemble, robust, and versatile, the cell accommodates up to four handcast or precast gels. Casting and running gels have never been quicker or easier.

TECHNICAL SPECIFICATION:

•  Total buffer volume - 700ml

•  Gel quantity 1-2 gels

•  Gel thickness 1.0mm, 0.75mm,1.5mm

•  Glass plates Short glass plate: 100×73mm; Spacer glass plate: 100×83mm

•  Gel size 83×73mm

•  Combs-1.0mm: 10 and 15 wells (standard accessories)

    0.75mm: 10 and 15 wells

    1.5mm: 10 and 15 wells

•  Typical run times for SDS-PAGE- 35–45 min (at 200 V constant)

•  Dimension(mm)- 180×130×160 (L×W×H)

Features

 •  The bottom of the gel-casting frame is supported by very flat glass to prevent the glass plate from sliding.

• The press-lock mechanism works better. The contrasting design clearly reflects the making process of separated gel. The press-to-lock design avoids the gel leakage caused by aging or poor function of traditional spring-pressure.

•  The design of sliding wedge of side fastener of electrophoresis core presses the short glass onto the sealing gasket tightly to avoid liquid leakage caused by traditional rotary side fastener.

•  The cam gel-making frame ensures the accurate aligning.

• Including 2 or 4 independent gel-cast frame and casting 1-4 gels simultaneously.

•  Easy to read the gauged glass plate and clearly marked comb.

•  Platinum electrode: φ0.25mm.

•  Precast gels :-precast gels

•  Handcast gels Cast using spacer plates
