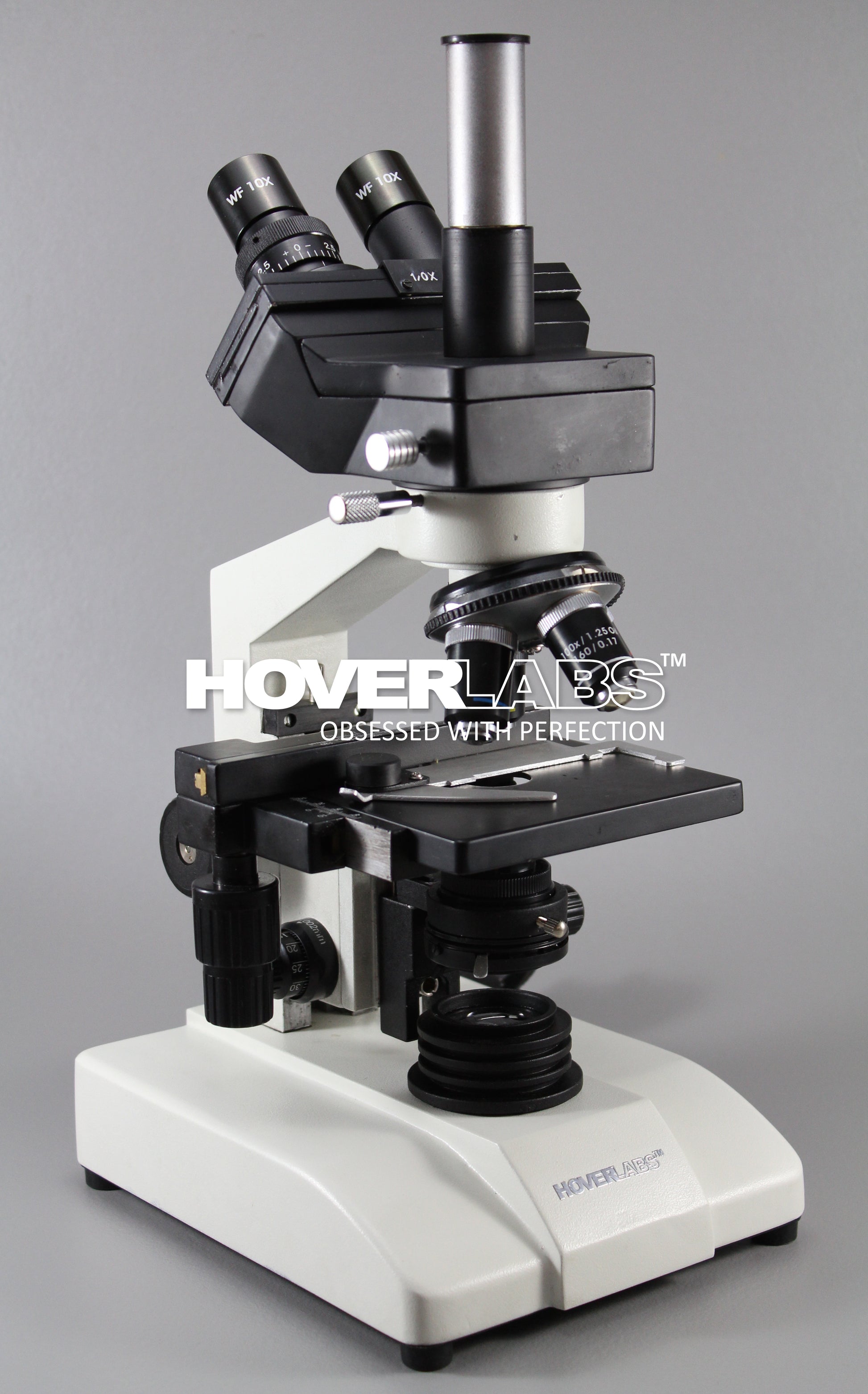

Trinocular Lab Pathological Microscope (Model No. HV-12TR)

Trinocular Lab Pathological Microscope (Model No. HV-12TR)


  • Rs. 8,560.00

HV-12TR Series of Inclined Microscopes are used for education, training analyti-cal and research work in Colleges, Hospitals, Laboratories and institutes. It has a heavy sturdy body & base for stability and is fitted with Quadruple re-volving nosepiece. Its stage size is 140x120mm with low coaxial controls for easy slide manipulation on both the axis with graduation and verniers, range of movements is 80x50mm. Condenser unit is having rack & pinion move-ment with Abbe Condenser N.A.1.25, Iris-diaphragm and filter holder. Having built-in base illumination system fitted with a Halogen Lamp 6V-20W operat-ed on 220 volts (Optional 110volts). Built in transformer is controlled by vari-able solid state electronic knob. There are three different inclined observation heads (interchangeable): Monocular, Binocular & Trinocular inclined at an angle of 45o and rotatable through 360o.Having following optical combina-tions: Achromatic or Semi Plan or Din Size Semi Plan Objectives: 4X,10X,40X SL & 100X SL (oil) , Eyepieces: WF 10X
