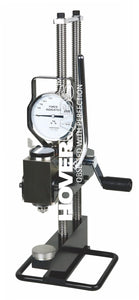

Hydraulic Brinell Hardness Tester (Model No. HVO-ISHB-H131)

Hydraulic Brinell Hardness Tester

Specification:

• Measuring Range: 16~650HBW

• Test force: 3000kg
• Indenter: Ø10mm carbide ball
• Measuring microscope: 20X, graduation 0.01mm
• Max. workpiece height: 350mm
• Max. workpiece depth: 90mm (from the center of indenter of the column)

• Dimension: 270×225×570mm

•

  Weight: 13.8kg

Standard Delivery:

• Main Unit: 1Pc
• Flat anvil: 1Pc
• V-type anvil: 1Pc
• Spherical anvil: 1Pc
• Ø10mm carbide ball: 2Pcs
• Brinell test block: 2Pcs
• Measuring Microscope: 1Pc

Features:

• According to ISO 6506, ASTM E10
