KAPLAN TURBINE TEST RIG
(Model: HVL-11)
Technical Specifications: -

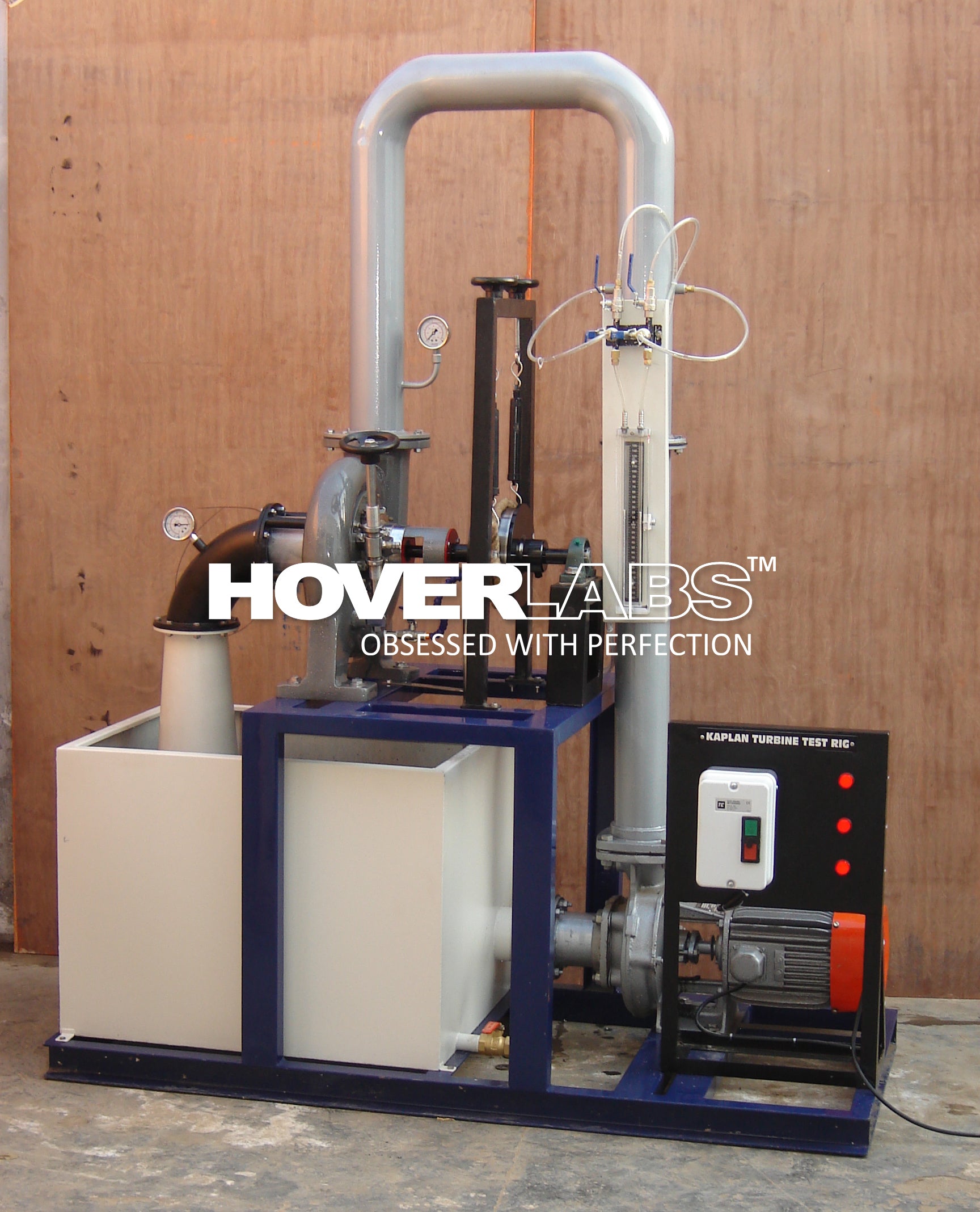

“HOVERLABS” Kaplan Turbine is an axial flow reaction turbine. This turbine is suitable for low head. The power produced by a turbine is proportional to QH. As the head (H) decreases the J discharge (Q) must increase to produce the same power. The present set-up consists of a scroll casing housing a runner. Water enters the turbine through the stationary guide vanes and passes through the runner axially. The runner has a hub and airfoil vanes, which are mounted on it. The water is fed to the turbine by means of Centrifugal Pump. The runner is directly mounted on one end of a central shaft and other end is connected to a brake arrangement. A transparent hollow cylinder made of acrylic is fitted in between the draft tube and the casing for observation of flow. Load is applied to the turbine with the help of supplied brake arrangement so that the efficiency of the turbine can be calculated. The set-up is supplied with control panel. A draft tube is fitted on the outlet of the turbine. The set-up is complete with guide mechanism. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.
Output Power -1 HP
Discharge -3500 LPM (Approx.)
Supply Head -5 m
Speed -1300 RPM (Approx.)
Runner- with adjustable curved vanes
Rope -Brake type Dynamometer Dia 200 mm.
Discharge -Measurement Venturimeter with pressure gauge.
Sump Tank -Capacity 290 Ltrs.
Water Circulation Centrifugal Pump- Capacity 5 HP Three Phase.
Control Panel -Starter, Mains Indicator
Tanks will be made of Stainless Steel
Whole set-up is well designed and arranged in a good quality painted structure
EXPERIMENTS
· To study the operation of Kaplan turbine.
· To determine the Output Power of Kaplan Turbine.
· To determine the turbine efficiency.
FEATURES
· Closed loop water circulation
· Compact & stand-alone set up
· Stainless Steel tanks
· Superb Painted structure
· Simple to operate & maintain
UTILITIES REQUIRED
· Water Supply & Drain.
· Electricity 5 kw, 440V AC, 3 phase.
· Floor Area 1.5x0.75 m.
