Product details

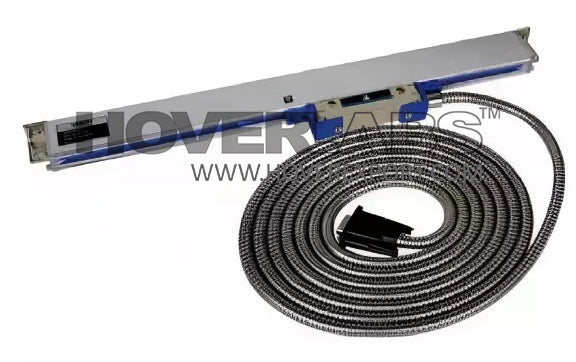

Linera Scales (TTL Signal)
Specification:
- L1 (mm): L+30 (L<950) / L+50 (L≥950)
- L2 (mm): L+136 (L<950) / L+156 (L≥950)
- L3 (mm): L+154 (L<950) / L+174 (L≥950)
- Resolution: 5µm
- Max. Response Speed: 60m/min
- Scale grating pitch: 20μm
- Scale reference point pitch: 50mm
- Accuracy: ±(5+5L/1000)μm (L is the effective length in mm)
- Cable length: 3.5m (L: 50-950mm), 5m (L: 1000-1500mm), 10m (L: 1600-3200mm)
- Output Signal: TTL
- Socket: 9PD
- Power Supply: 5±0.5V
Features:
- Plain Base (Included for L>1500mm)
- ‘L’ shape support (included)
- Mounting accessories (included)
- Anti-dust cover (included)
Standard Delivery
- Main Unit: 1Pc
- ‘L’ shape support: 1Pc
- Anti-dust Cover: 1Pc
- Plain Base: 1Pc
- Mounting accessories: 1Pc
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
