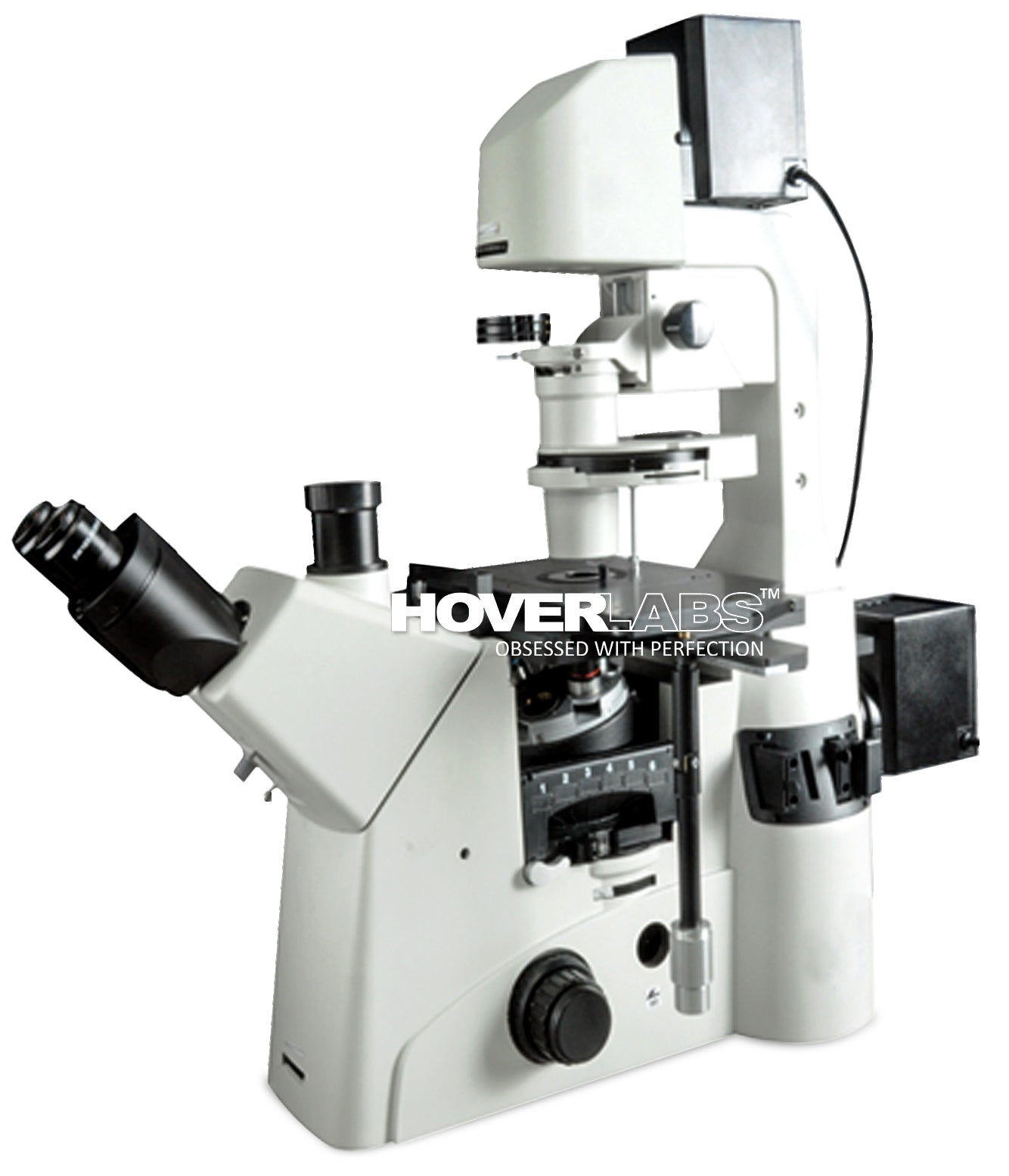

lnverted Fluorescence Microscope (Make: DEWINTER, Model: VICTORY FL-DIC)

lnverted Fluorescence Microscope

(Make: DEWINTER, Model: VICTORY FL-DIC)

Technical Specification: -

Optical system

▪ Infinity plan semi-APO optical system

Eyepiece

▪ SW-H10x/FN22mm/φ30mm

Viewing Head

▪ Trinocular head with Bertrand lens, 3 position beam split ratio:

50/50,100/0,0/100

▪ Binocular ERGO head

Plan semi-APO phase contrast objective

▪ 4x NA=0.13 WD=16.5mm Cover glass 1.2mm

▪ 10xPH NA=0.3 WD=8.1mm Cover glass 1.2mm

▪ 20xPH NA=0.45 WD=7.5-8.8mm Cover glass correction 0-2mm

▪ 40xPH NA=0.60 WD=3-4.4mm Cover glass correction 0-2mm

Nosepiece

▪ 6-hole nosepiece with DIC slot

(DIC for transmitted and reflected)

Condenser

▪ Long working distance condenser, NA0.55, WD=26mm, with 6-position plate

Illumination

▪ Kohler illumination, 10W LED

▪ LED Fluorescent light

Focusing

▪ Coaxial coarse & fine focusing. Movement range 9mm, 0.1mm/rotation

Observation model switching

▪ Multi-model plate structure, total 6 position, could be taken out from main frame and change different cube easily.

Internal magnification

▪ 1x, 1.5x

Side port

▪ Switchable by turning plate,

3 models: left side port/eyepiece=50/50; right

side port/eyepiece=20/80; left & right-side port/eyepiece=0/100

DIC

▪ YES, for 20x and 40x

Stage

▪ Three-layer mechanical stage, movement range 130x85mm, flexible komb.

Different small sizes stage could be attached to main stage

Fluorescent attachment

▪ LED EPI-Fluorescent attachment with B/G/U/V exciting filters

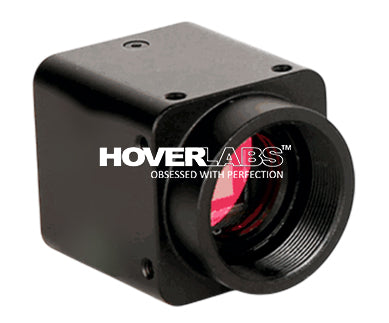

DIGITAL USB CMOS MICROSCOPE CAMERA

MODEL: DGI 510 (G)

FEATURES:

▪ 5.0 megapixels with progressive scanning 2/3” CMOS image sensor with global shutter.

▪ No compression, no interpolation.

▪ Support still image capture (JPG, BMP)

▪ Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported

▪ Resolution: (8bit);480 Mibt/Sec, DC5V±5%

▪ Pixel size: 3.45 x 3.45

▪ Frame Rate. 71.2 fps @ 2448 x 2048, 175.2 fps @ 1224 x 1024

▪ Auto White Balance.

▪ Shutter Electronic10μs–32ms, Auto exposure

▪ Operating Temp: 0°C ~ 60°C

DEWINTER LIVE BIOLOGICAL MICROSCOPE MEASUREMENT

MODEL: BIOWIZARD SOFTWARE

SPECIFICATIONS:

▪ IMAGE EDITING

Cut/Copy/Paste, selected copy by free hand AOL. Resize, Crop/Duplicate/restore, conversion to other format like BMP, JPG, TIF,

Annotation like, free hand drawing, straight line, square, Circle, arrow, Text, highlighter etc, pointer, and eraser.

▪ VIEW

Zoom in/Zoom out, rotation 90°, 180°, 27°, horizontal flip/vertical flip,

Redo/Undo, Intensity histogram.

▪ IMAGE PROCESSING

Background subtraction, contrast enhancement, boolean math, ADD, OR, XOR etc.

▪ ROUTINE FILTERS

Invert, Brightness, Contrast, Hue, Saturation, Blur. Noise removal, Gamma RGB, etc.

▪ EDGE DETECTION & MORPHOLOGY FUNCTION

Laplacing, sobel, Kirsh, Skelotizing, pruning, histograme equalization, histogram smoothing etc.

▪ MEASUREMENT

a) Spartial calibration

b) Line measurements for Distance, Length, Width, Perimeter, Angle, and

Three Point Radius.

c) Area by enclosed line controlled by four arrow keys available on keyboard arrows with zoomed preview.

▪ COUNT & CLASSIFICATION

Identification of objects in an image, count them, obtain several features measurements. Objects identification by user or automatically. User defined

classification on basis of size or intensity.

▪ THRESHOLD PARTICLE MEASUREMENT: Manual, Auto bright and Auto dark methods to identity intensity range defined object to be measured.

Various calculation & measurements available for selected Particle are; Dimensions, Area, Perimeter, Ferrite Length, Min/Max Radius, Thread Length, Thread Width, Fiber Length, Fiber Width.

▪ SEGMENTATION

Measure area fraction & volume fraction. Identify multiple phases within Microstructure. Also delineate phases from the histogram.

▪ REPORT

a) Three options: Direct printout with original image processed Image & Tabular results

▪ Export to MS Office or Excel for further modification.

Microscope, Camera, Stage and Control / Analysis software are from same Manufacturer.

Desktop PC

Supplied Complete with Branded latest model PC with at least i7 processor, 32 GB or higher HDD, Genuine Windows 10 Pro M-bit OS or higher, 22" RAM. 1 TB or higher or bigger LED monitor. keyboard & mouse.

Certified personnel will provide complete installation, demonstration, and operational training.

Internal Code: - KD.T2026270104
