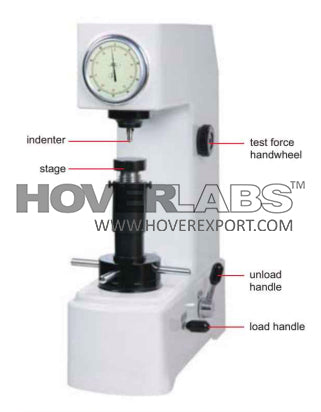

Manual Digital Rockwell Hardness Tester (Basic Type) (Model No. HVO-HDT-RW160)

Manual Digital Rockwell Hardness Tester (Basic Type)

Specification:

• Hardness Scale: HRA, HRB, HRC, HRD, HRF, HRG
• Preliminary Test Force: 98N (10kg)
• Test Force: 588N (60kg), 980N (100kg), 1471N (150kg)
• Display: Analogue
• Stage Elevation: Manual
• Load Control: Manual
• Min. Reading: 0.5HR

• Max. Workpiece Height: 170mm
• Max. Workpiece Depth: 135mm (From the Center of Indenter to the wall of main body)
• Power Supply: 220V, 50/60 Hz
• Dimension: 466x238x630mm
• Weight: 70kg

Features:

• According to ISO 6508

Standard Delivery:

• Main Unit: 1Pc
• ø58mm Flat Anvil: 1Pc

• ø150mm Flat Anvil: 1Pc
• V-type Anvil: 1Pc
• Diamond Indenter: 1Pc
• ø1.5875mm Steel Ball Indenter: 1Pc
• ø1.5875mm Steel Ball: 1Pc
• Level: 1Pc

• Hardness Test Block HRA80-88: 1Pc
• Hardness Test Block HRB85-95: 1Pc

• Hardness Test Block HRC20-30: 1Pc
• Hardness Test Block HRC35-55: 1Pc
• Hardness Test Block HRC60-70: 1Pc
• Anti-dust Cover: 1Pc
