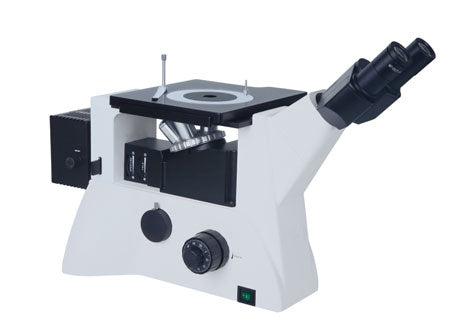

Metallurgical Microscope (Model No. HVO-5103-M1000)
Metallurgical Microscope (bright field objectives)
Specification:
- Illumination: 6V/30W halogen lamp, brightness is adjustable
- objective (Infinite plan achromatic): Bright field objectives 10X, 20X, 50X, 100X
- Working Distance: 20.2mm, 8.80mm, 3.68mm, 0.40mm
- Numerical Aperture: 0.25, 0.40, 0.70, 0.85
- Magnification: 100X1000X
- Eyepiece (Wide Field): 10X (View filed: Ø22mm)
- Stage:
Double Layer
Size: 242x200mm
Travel: 30x30mm
- Pupil Distance: 53-75mm
- Diopter Adjustment: ± diopter (One Eyepiece)
- Power Supply: 220V, 50/60Hz
- Dimension: 614x250x394mm
- Weight: 13Kg
Features
- Infinite optical system, polarization observation
- Kohler illumination system provides uniform illumination field
- Objectives 50X, 100X are spring type
Standard Delivery
- Main Unit: 1Pc
- Polarize and Analyzer: 1Pc
-
Anti Dust Cover: 1Pc
