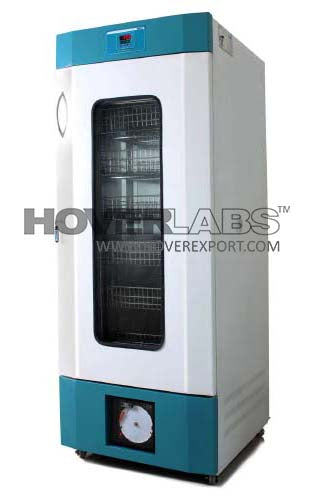

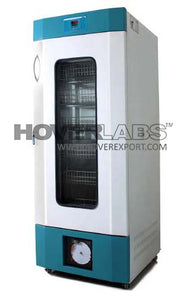

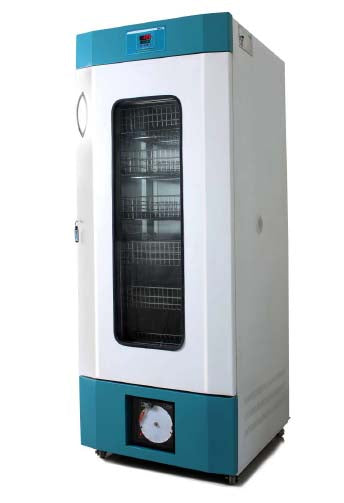

Micro Controller Based Blood Bank Refrigerator (Model No. HVO-MC-300)

Micro Controller Based Blood Bank Refrigerator

Specification:

• Capacity: 300ltrs
• No. of. Bags (approx.)/ 450 ml: 216
• No. of Trays: 6
• No. of Doors: Single Door
• Internal Size (WxDxH) cms: 56x45x120cm
• External Size (WxDxH) cms: 71x93x189cm
• Temperature Range: 4°C
• Temperature Accuracy: ± 0.5°C
• Uniformity: ± 1°C
• Control System: Micro controller-based temperature indicator cum controller with Digital Display and PT 100 sensor
• Alarm: Audio Visual Alarm if the temperature deviates from the preset temperature
• Refrigeration System: Hermetically Sealed CFC Free Emerson Compressor with R 134a refrigerant
• Air Circulation: Motor and blower arrangement to have uniformity of temperature under loaded condition.
• Insulation: 3” Thick CFC free PUF Insulation.
• Lighting: Interior illumination for working area
• Door: See through double pane glass door
• Observation Door: Inside see through unbreakable acrylic door
• Trays: Specially designed Stainless Steel roll out basket
• Temperature Recorder: 7 days circular chart
• Power: Works on 230 V AC single Phase 50Hz
• Other: Castor wheels, MCB. Heavy duty latch with lock & key
• Circular Chart-100: 1 packet (100 Nos.) 7 days circular chart suitable for temperature recorder
• Fiber Pen -5: 5 nos. x 4 set fiber tip disposable pen suitable for recorder
• Voltage Stabilizer: Suitable voltage stabilizer
• Battery Backup-4: Battery backup of 4 hours for controller and chart recorder.
• Safety Features: 180 Sec. compressor ‘ON’ delay timer to safe guard the compressor. Password protected keypad lock
• Inner Stainless steel 304, 0.8 mm & Outer mild steel,1.0 mm powder coated

SALIENT FEATURES

• Unidirectional air ow system ensures even temperature distribution and quick recovery after door openings.
• Foamed in place CFC free PUF insulation ensures temperature stability and reduced power consumption.
• Specially designed roll-out stainless steel Basket ensures even temperature distribution. Chamber illumination with LED light
• Caster wheels for ease of mobility
• 7 days circular chart recorder for temperature recording   AC.

SAFETY FEATURES

• Miniature circuit breaker to protect electronic components in case of abnormal power supply.
• Audio visual alarm when temperature deviates from the preset temperature
• Overload protector for safeguard the compressor.
• 180 seconds time delay for compressor switch ON.
