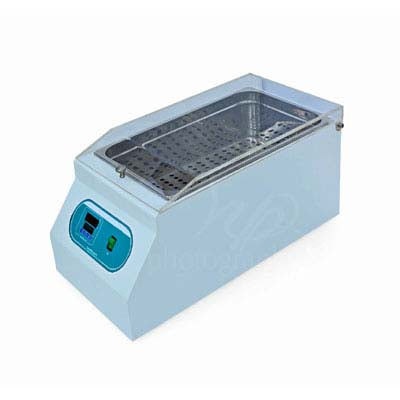

Micro Controller based Cryoprecipitate Bath (Model No. HVO-MC-20)

Micro Controller based Cryoprecipitate Bath

Specification:

• Capacity: 20ltrs
• No. of. Bags: 15
• No. of Trays: 6
• Internal Size (WxDxH) cms: 50x30x15cm

• External Size (WxDxH) cms: 86x45x66cm
• Temperature Range: 3 to 50°C
• Control System: Micro controller based temperature indicator cum controller with digital display and PT 100 sensor.

• Alarm: Audio Visual Alarm if the temperature deviates from the preset temperature
• Display: Set Value and Process Value
• Refrigeration System: Hermetically Sealed CFC Free Emerson Compressor
• Inner Chamber: Stainless steel 316 and 1mm thick
• Outer chamber: Mild steel powder coated
• Plasma holder: Plasma Bag holder
• Circulation: Integrated pump for internal circulation
• Insulation: 3” Thick CFC free PUF Insulation.

• Power: Works on 230 V AC single phase 50Hz
• Safety Features:


SALIENT FEATURES

• Integrated pump for internal circulation and uniformity
• Ergonomic design and easy operation
• Stainless steel basket for holding the plasma bags
• Seamless inner chamber with round corners
• Stainless steel emersion heaters
• Facility to drain the water from bath

SAFETY FEATURES

• Miniature circuit breaker to protect electronic components in case of abnormal power supply.
• Audio visual alarm for temperature variations from set Values
• Overload protector for safe guard the compressor
• 180 seconds time delay for compressor switch ON.
• With low liquid level indication & automatic cut-off.
