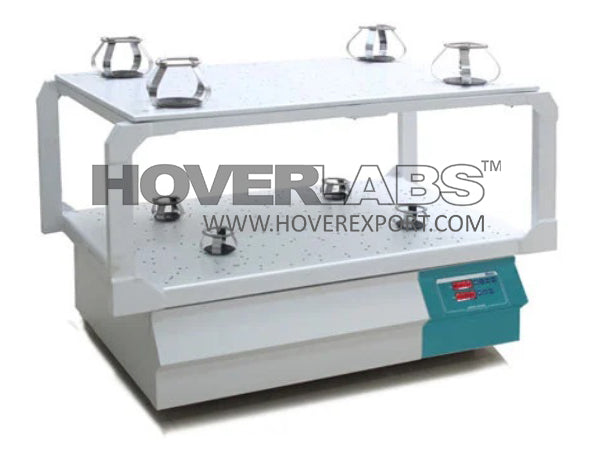

Micro Controller Based Orbital Shaker (Model No. HVO-OS-90D)
Micro Controller Based Orbital Shake
HOOVERLABS Two Tier Orbital Shakers consist of heavy-duty mild steel fabricated housing comprising of a brushless induction motor and variable frequency drive, these shakers have a universal platform with a provision of flask holders for various flask capacities.
SALIENT FEATURES:
- Universal Platform to accommodate for conical flasks, round bottom flasks, volumetric flask, test tube rack
- Adjustable leveling Jack
- 5 Program Memory
- Forward and backward rotation programs
- Auto start at set RPM when power resume
- Continuous Operation
- Maintenance free Brushless Induction Motor
- Variable frequency drive (VFD)
- Permanently lubricated bearing for noise less operation
- Eccentric counter balanced drive mechanism for uniform mixing
Specifications:
- Movement: Orbital
- Motor: Brushless Induction Motor
- Timer: 999 hrs.
- Drive: VFD (Variable Frequency Drive)
- Amplitude: 50 mm
- RPM Accuracy: ±5
- Speed-RPM: 30-250 RPM
- Platform Size (mm): 900 x 620mm
- No. of Platform: 2
- Control System: Micro controller based controller
- Platform: Universal Platform to accommodate interchangeable clamps of assorted sizes for different capacity of flasks
- Program Memory: 5 pre set program
- Auto Restart: Auto- restart at preset RPM in case of power failure
- Display: LED with time and rpm
- Material of Construction: Mild steel epoxy powder coated
- Power: Works on 230 V AC single phase 50Hz.
- Outer Dimension: 920 x 670 x 700mm
