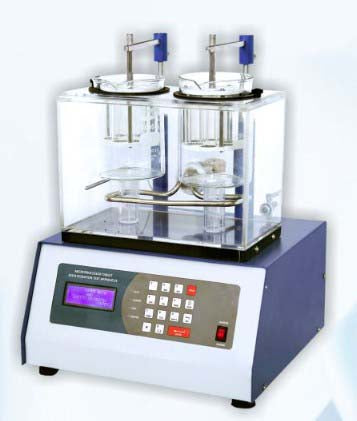

Microprocessor Disintegration Test Apparatus (2 Basket) (Model No. HVO-MDTA-731)
Microprocessor Disintegration Test Apparatus (2 Basket)
Model No: HVO-MDTA-731
Technical Specification:
- Display: 20x4 line alphanumeric LCD display with backlit
- Keyboard: 15 soft touch membrane keys
- LED's: 4 LED's available for different status indications. 3 LED's for Test status like Run, Alarm, End and one LED for heater on/off status.
- Setup Data: Facility for 20 different test setups available
- Printer: Provision for the attachment of dot-matrix printer with Centronics parallel port interface
- Speed: 55 mm. 30 ± 1 strokes per minute
- Resolution: 1 Sec -99 Minutes
- Temp. Range: 20°C-50°C
- Temp. Accuracy: ± 0.2 °C
- Temp. Control: Microprocessor based using PT100/Semiconductor Sensor
- Reaction Beaker: 1000 ml
- Heater: 0.4 KW (Approx.)
- PC Connectivity: USB interface available
- Power: 230 V ± 10% AC, 50 Hz
- Dimensions: 365 x 350 x 495 mm (L x B x H) (Approx.)
- Weight: 9 Kg (Approx.)
Salient Features :
- Complies with USP IP specifications.
- Extremely useful for pharmaceutical labs
- Highly Accurate and Easy to Operate
- Baskets 'UP' & 'DOWN 'movement as per IP/USP Specifications
- 20 x 4 Line Alphanumeric LCD with Backlit
- 15 Soft Touch Membrane Type Keys
- 20 Setups Storage Facility
- 400 Samples Storage Facility
- USB interface available.
- Audio Visual Indicators for System Status
STANDARD ACCESSORIES
- External Temperature Sensor
- Mains Lead
- Instruction Manual
- Dust Cover
