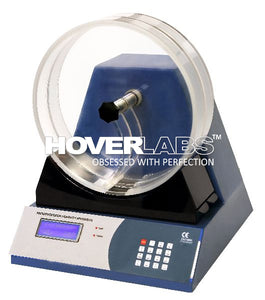

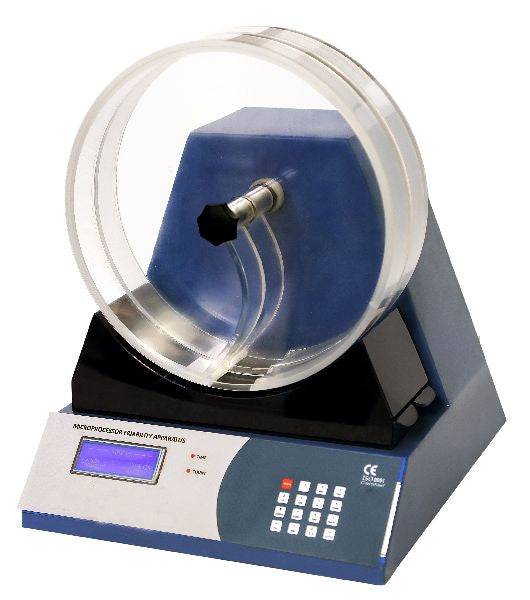

Microprocessor Friability Apparatus (Model No. HVO-710)

Microprocessor Friability Apparatus

Technical Specification

• Test Methods: Time and Count Mode
• Speed of Drums: 20 - 60 RPM ± 0.5 RPM
• No of Drums: Two
• Display: 20x4 Alphanumeric LCD
• Keyboard: Soft touch membrane keys, alphanumeric mobile keypad
• Counter: 1 to 9999 rotations
• Timer: 1 sec to 9 hrs. 59 min 59 sec
• Type of Drive: Direct Drive with Stepper Motor
• Printer: Parallel Printer
• PC Connectivity: USB interface available
• Storage: 200 Sample reading with batch number. sample number
• Electrical Supply: 230 VAC ± 10%, 50/60 Hz, 44VA
• Dimensions (LxBxH): 335mm X 330mm X 340mm
• Weight: 12Kgs

Salient Features:

✓ Complies with USP, IP specifications
✓ Microprocessor based, easy to use
✓ 20 x 4line alphanumeric LCD display with backlit
✓ 16 Soft touch membrane type keys
✓ Independent programmable setups for Time & Count mode with storage
✓ Password-protected user access
✓ Facility to attach with weighing balance
✓ Automatically calculates percentage friability
✓ Loading and unloading of tablets without removing drums
✓ Power Failure detection facility
