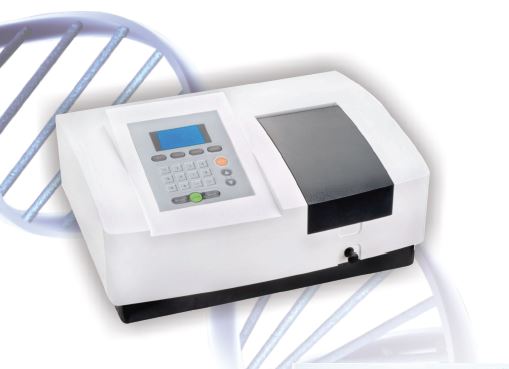

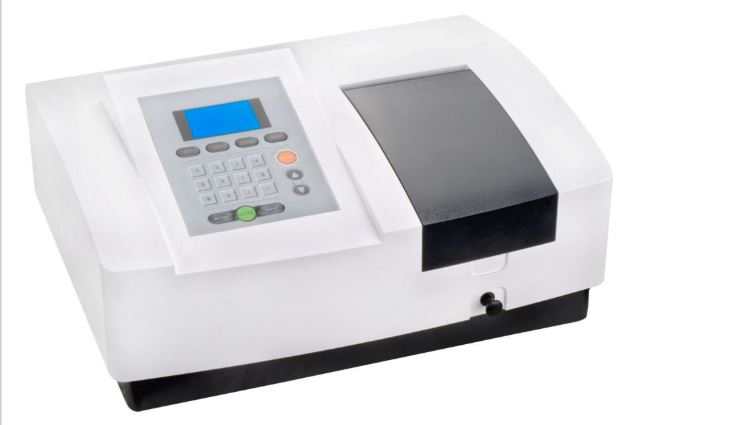

Microprocessor Single Beam UV-VIS Spectrophotometer with Scanning Software (Model No. HV-294)

Features :

1. Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance.
2. The instrument has PC connectivity software expands the capabilities of the instrument includes Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis,
3. Multi-wavelength test, etc.
4. Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
5. Plug type deuterium lamp and tungsten lamp transfer light without optics debugging.

Specifications :

• Optical System    :    Single Beam, Grating 1200 lines/mm
• Wavelength Range    :    190~1100nm
• Spectral Bandwidth    :    2 nm
• Wavelength Accuracy    :    1nm
• Wavelength Repeatability    :    <=0.2 nm
• Photometric Accuracy    :    0.5%T
• Photometric Repeatability    :    0.2%T
• Photometric Range    :    0 - 200%T, - 0.3 - 3A
• Stray light    :    0.15%T
• Stability    :    ±0.0002A/h @500nm
• Baseline Flatness    :    ±0.002 A
• Noise    :    ±0.001 A
• Wavelength Setting    :    Auto
• Light Source    :    Imported Deuterium & Tungsten lamp
• Display    :    128*64 LCD
• Detector    :    Imported Silicon Photodiode
• Output    :    USB port & Parallel port ( Printer)
• Power    :    AC 220V/50Hz; AC 110V/60Hz
• Dimension    :    590*460*220mm
• Net Weight    :    16kg
• Shipping Size    :    700*580*340mm
• Weight    :    20kg

Standard Configuration :

• Main Set : 1 No.
• USB Cable  : 1 No.
• Accessory kit, Including a 4 glass cell  : 1 No.
• 2 Quartz Cell  : 1 No.
• Operating Manual Software Manual  : 1 No.
• Dust Cover : 1 No.
• Software CD  : 1 No.
• Software Key  : 1 No.
• Power Cable  : 1 No.
