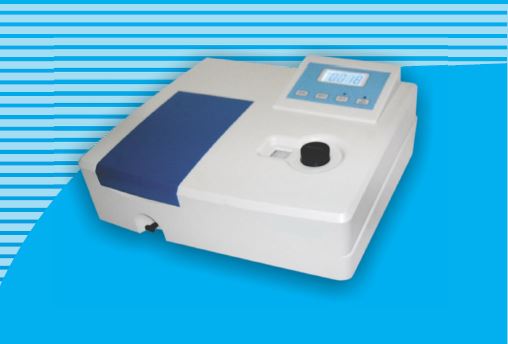

Microprocessor Single Beam Visible Spectrophotometer with Software (Model No. HV-722)

• The monochromator with a holographic flashing grating is used. It has the advantage of high wavelength precision, goog monochromaticity and low stray light.
• A sample compartment for 0.5cm - 10cm cells.
• Computer control system, precise automatic T/A changeover.
• Automatic zero and full scale adjustment.
• Direct concentration read-out and concentration factor setting function.3
• Equipped with Rs232 Port. Data can be sent to PC special software.

Specification :

• Wavelength Range : 325 - 1000nm
• Wavelength Accuracy : <2nm
• Wavelength Repeatability : <1nm
• Transmittance Accuracy : ±0.5%
• Transmittance Repeatability : <0.2%
• Spectrum Bandwidth : 2 nm
• Stray Light : <0.5% (at 360nm, NaNO2
• Light Current Drift : 0.5% / 3 min
• Dark Current Drift : 0.2% / 3 min
• Cell Holder : 10 nm
• Dimensions : 56x48x29cms
• Net Weight : 11.5 Kgs
• Gross Weight : 13.5 Kgs

Standard Accessories :

• Main Instrument : 1 unit
• Operational Manual : 1 pc
• Glass cell 10 mm : 4 Pcs
• Power Cable : 1 pc
• Fuse(3A) : 2 Pcs
• Software CD : 1 no.
• Rs232 Cble : 1 no.
