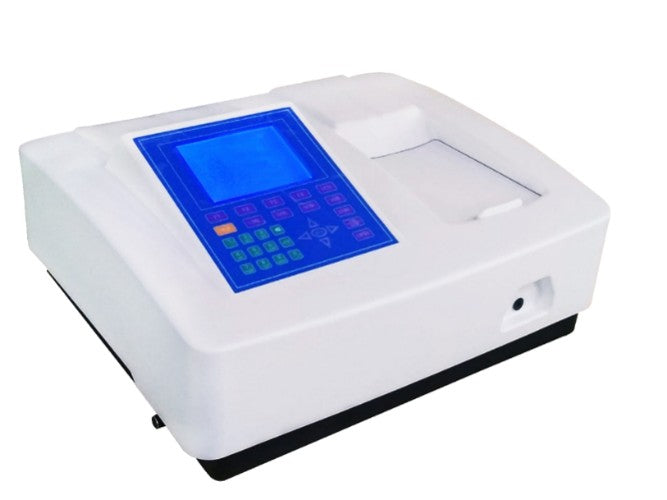

Microprocessor UV-VIS Double Beam Spectrophotometer (Model: HVL-2704)

Microprocessor UV-VIS Double Beam Spectrophotometer (Model: HVL-2704)

Technical Specification:

Double Beam UV/VIS Spectrophotometer

spectrophotometer is double beam optical system can restrain drift, compensates for blank changes, Suitable for long time test. It is simple to fit a curve by using your standard with single or dual WL. It has wavelength scanning function using PC software. It is widely used in colleges and QC labs.

-Wavelength Range- 190-1100nm

-Spectral Bandwidth- 1nm

-Optical System- Double Beam, Blazed Holographic Grating (1200 lines/mm)

-Wavelength Accuracy- ±0.5nm

-Wavelength Repeatability- ≤0.2nm

-Wavelength Setting- Auto, Resolution 0.1nm

-Stray Light- ≤0.05%T(220/360nm)

-Scan Speed- High, Medium, Low. Max.2000nm/minute

-Baseline Flatness- ±0.0015A

-Stability- ±0.001A/h (500nm,0A)

-Sample Compartment- 10mm Pathlength Cuvette

-Detector- Silicon Photodiode

-Lamps- Tungsten Lamp & Deuterium Lamp (Pre-aligned)

-Display- Graphic LCD (320*240 Dots)

- Keypad- 30-key Alphanumeric Membrance Keypad

-Output Port- USB Port

-Printer- Mini Serial Printer; PC Printer

-Power Requirements- AC 90-250V, 50/60Hz

-Dimension- 545x468x245mm

-Weight- 18kg

INTERNAL CODE: - KD. 2498.25812
