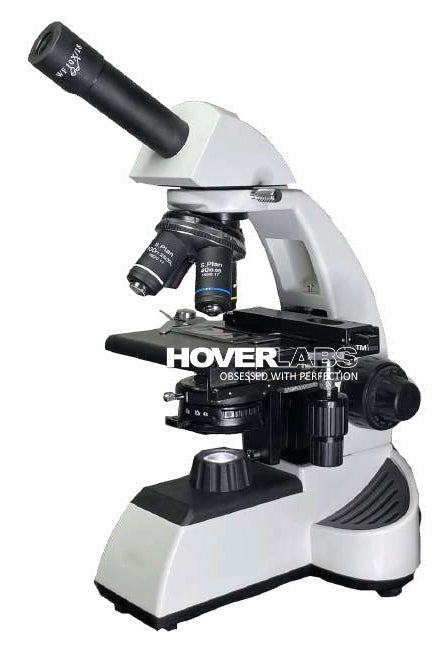

MONOCULAR EDUCATIONAL / LABORATORY MICROSCOPE (Model: HOX-23)

MONOCULAR EDUCATIONAL / LABORATORY MICROSCOPE

(Model: HOX-23)

Technical Specifications: -

- Stand: Ergonomically designed sturdy Aluminium Die cast body with

high quality pai. With window in the arm, extended base with hand

rest for enhanced comfort and stability.

- Viewing Body: Monocular/ Binocular/ Trinocular head, 45° inclined,

360° rotatable.

- Eyepieces: Wide field 10x/18mm, lockable, antifungal.

- Nosepiece: Precised quadruple nosepiece (Ball bearing type) with

click stops and rubber grip.

- Objectives: High performance Semi-Plan HOX series DIN objectives

4x (N.A. 0.10, W.D. 25mm), 10x (N.A. 0.25, W.D. 6.9mm), 40x (SL, N.A.

0.65, W.D. 06mm) and 100x (SL, Oil, N.A. 1.25, W.D. 0.17mm).

Antifungal, anti-reflection coated.

Mechanical stage: Single plate stage 140 x 132mm, X-Y travel range

90mm x 55mm with low-height controls. Hard coated surface for

scratch resistance.

- Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on metal guides.

Focusing: Coaxial coarse and fine focus on ball drive system for smooth operation.

Illumination: Advanced i LED 3W LED illumination with variable intensity illumination control. Up to 100,000 hours of LED life. with Optional battery backup of 6-8 hours (Optional 6V 20W Halogen illumination).

Electronics: Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer.

Accessories (Optional):

Pointers & Micrometer reticules Wooden box

Auxiliary objectives and eyepieces Slider/Turret Type Phase Contrast Attachment Polarizing attachment

Single filter/ Dual filter fluorescent attachment Dark Field attachment

Application specific USB/HDMI cameras

Package Contents:

10ml Immersion oil bottle

User manual

Nylon dust cover & cleaning cloth

Styrofoam casing

INTERNAL CODE: - KD.PRV/25715
