Product details

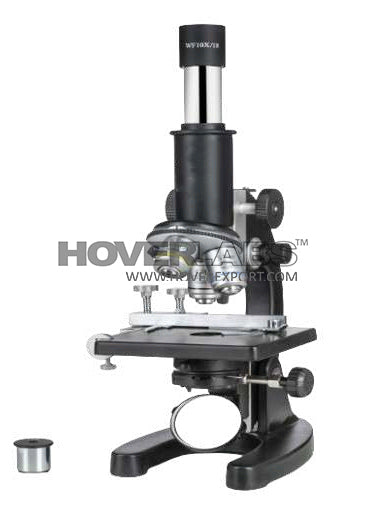

MONOCULAR MICROSCOPE
(Model: HOX-9s)
Technical Specifications: -
• Stand: Hinged type sturdy stand with horse shoe base.
• Viewing Body: Monocular straight tube, 90° inclined.
• Eyepieces: WF 10x/18mm and Huygenian 15x Eyepiece, antifungal and anti-reflection treated.
• Nosepiece: Precise quadruple nosepiece (Ball bearing type) with click stops and rubber grip.
• Objectives: High performance S-Plan Achromat JIS objectives 10x,
40x (spring loaded) and 100x (spring loaded, oil), antifungal and antireflected treated.
• Mechanical stage: Single plate 120 x 120mm with bolted XY mechanical stage, Hard coated surface for scratch resistance.
• Condenser: Sub stage Abbe condenser NA 1.25 with Iris diaphragm.
Rack and pinion movements on metal guides.
• Focusing: Smoothly operated separate coarse and fine focus system.
• Illumination: Adjustable plano concave mirror. Optional LED sub
stage lamp.
• Warranty: One year against manufacturing defects.
Accessories (Optional):
-Pointers & Micrometer reticules
-Wooden box
-Auxiliary objectives and eyepieces
Package Contents:
-10ml Immersion oil bottle
-User manual
-Nylon dust cover & cleaning cloth
-Styrofoam casing
INTERNAL CODE: -KD.PRV/2578
