Product details

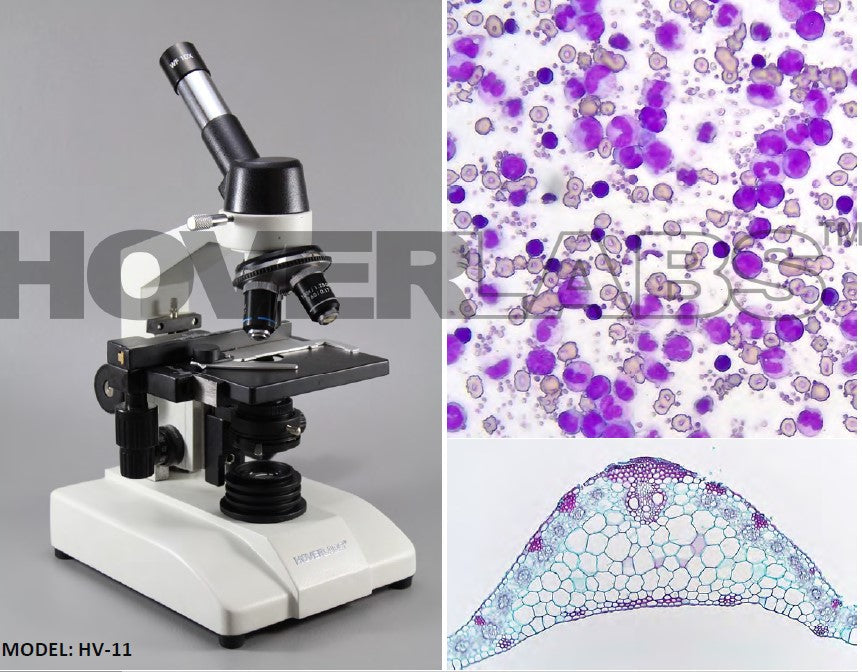

MONOCULAR PATHOLOGICAL MICROSCOPE MODEL: HV-11
Technical Specifications:
|
Stand |
L- Shaped Sturdy Stand With Anti-rust Materials. Ergonomic Base With Greater Stability. |
|
Viewing Body |
Monocular Tube, 45° Inclined, 360° Rotatable |
|
Eyepiece |
Wide Field Eyepiece WF 10X |
|
Nosepiece |
Quadruple Nosepiece (Ball Bearing Type) |
|
Objectives |
Achromatic Objectives 4X/ NA 0.10, 10X/ NA 0.25 , 40X/ NA 0.65 (Sl) , 100X/ NA 1.25 (SL, Oil) |
|
Mechanical Stage |
Graduated Mechanical Sliding Stage Area of 145mm×125mm & Moving Range of 80mm(x)×50mm(y) With Co-axial Controls |
|
Condenser |
Abbe Condenser N.A＝1.25 With Iris Diaphragm And Swing Out Filter Holder, Moving Up And Down |
|
Focusing |
Separate Coarse And Fine Focusing Mechanism |
|
Illumination System |
Built-in Bright White LED, Brightness Adjustable With Intensity Control Regulator |
|
Power |
Power Input 220v Ac, 50 Hz |
|
Package Con-tents |
Thermocole Box, With Cleaning Cloth, Dust Cover, Power Cord |
Internal Code: SA. 8546-R.231212
Warranty and support
Every HOVERLABS instrument carries a 1-year Ex-Works warranty against manufacturing defects. Units are stringently tested on numerous parameters, strictly adhering to tech. specs., before dispatch. Online installation, if required, is free (one time); physical installation is charged extra.
Shipping and payment
Free shipping across India with no packaging charges. Institutions can order via purchase order, NEFT/RTGS or UPI, and credit terms are available for eligible buyers. Add your GSTIN at cart for a GST tax invoice. Export enquiries: LC or wire transfer, all Incoterms.
Bulk, tender and GeM supply
We match BOQ specifications line by line and supply against purchase orders as well as GeM. Send your requirement list for a formal quotation, usually within one working day — Tenders & GeM.
