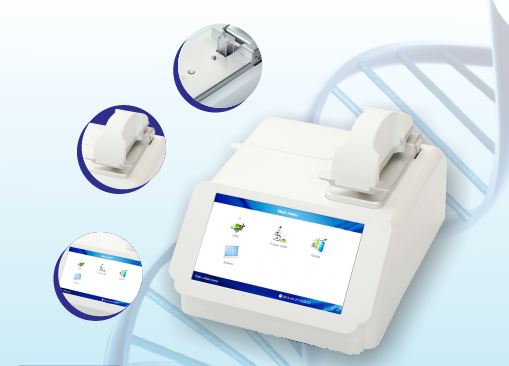

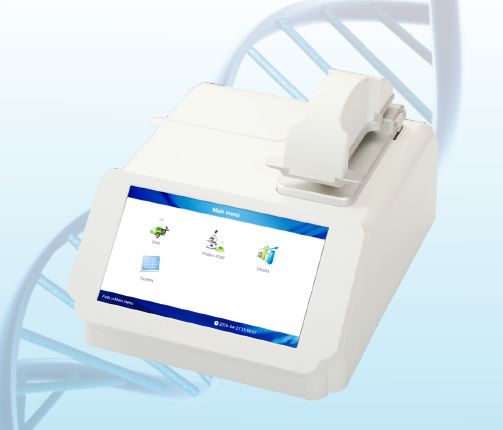

Nano Spectrophotometer (Model No. HV-5100)

Features :

1. Nano is a basic micro-volume UV spectrophotometer designed (only 2 types of wavelength:  260nm and 280nm) for the measurement of nucleic acids and proteins. It is added a function of bacterium cell concentration detection (OD600)
2. Android system operation, 7 inch touch screen no computer, APP soft, simple interface, easy to use
3. The data can be printed with built-in printer, the data can output via SD-RAM Card and USB memory
4. Measure nucleic acids concentration at 260nm, and purity using the 260/280 ratio. Measure purified protein at 280nm

• Wavelength Range    :    230nm, 260nm, 280nm
• Minimum Sample Size    :    0.5-2.0μl
• Path Length    :    0.2mm (High concentration)
•                               1.0mm (Ordinary concentration)
• Light Source     :    Xenon flash lamp
• Detector Type   :    UV-sillion photocell
• Absorbance Precision    :   0.003Abs
• Absorbance Accuracy    :   1% (7.332Abs at 260nm)
• Detects Nucleic Acid up to    :  10-4000ng/ul (dsDNA)
• Measurement Time    :    <15S
• Data Output    :    Aluminum alloy and Quartz fiber
• Sample Pedestal Materia    :    USB
• Operating Voltage    :    24V DC
• Operating Power Consumption    :  25W
• Standby Power Consumption    :    5W
• Dimension (W x D x H)mm    :   210 x 280 x 181
• Weight    :    3.6kg
• Software Compatibility    :   Android System
• Light Source    :    LED
• Wavelength Range    :   600±8nm
• Absorbance Range    :  0-4A
