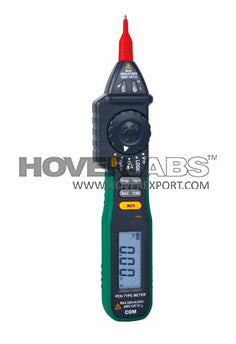

Pen-Type Digital Multimeter (Model No. HVO-9241-ML200)
Pen-Type Digital Multimeter
Specification:
-
DC Voltage:
- Range: 200mV/2V/20V/200V/600V
- Resolution: 0.1mV/1mV/ 10mV/0.1V/1V
- Accuracy: ±(0.7%+2)
- AC Voltage:
- Range: 200mV/2V/20V/200V/600V
- Resolution: 0.1mV/1mV/ 10mV/0.1V/1V
- Accuracy: ±(0.8%+3) or ±(1.0%+3)
- Resolution: 0.1mV/1mV/ 10mV/0.1V/1V
- Accuracy: ±(0.8%+3) or ±(1.0%+3)
- DC Current:
- Range: 20mA/200mA
- Resolution: 10μA/0.1mA
- Accuracy: ±(1.5%+3)
- Resolution: 10μA/0.1mA
- Accuracy: ±(1.5%+3)
- AC Current:
- Range: 20mA/200mA
- Resolution: 10μA/0.1mA
- Accuracy: ±(2.0%+3)
- Resistance
- Range: 200 Ω; Resolution: 0.1 Ω; Accuracy: ±(1.0%+3)
- Range: 2kΩ/20kΩ/200kΩ/2MΩ; Resolution: 1Ω/10Ω/0.1kΩ/1kΩ; Accuracy: ±(1.0%+1)
- Range: 20 MΩ; Resolution: 10kΩ; Accuracy: ±(1.0%+5)
- Logic level test:
- <1.5V (green LED on)
- 1.5~3.5V (green & red LED off)
- >3.5V (red LED on)
- Diode: open circuit voltage 1.5V
- Continuity buzzer: <50Ω
- Power Supply: 2x1.5V AAA batteries
Features:
- Auto/manual ranging
- Maximum mode
- Data hold
- NCV detection
- Low battery indication
- Auto power off
- Safety rating: CAT Ill 600V
Standard Delivery:
- Main Unit: 1Pc
- Probe: 1Pc
- Clip: 2pcs
- 1.5V battery: 2Pcs
