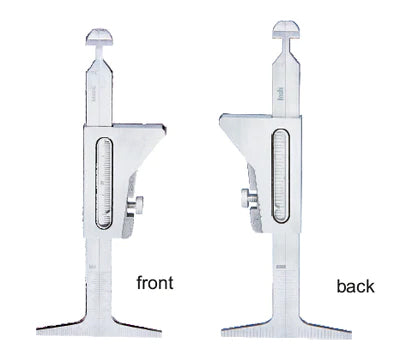

Pipe Welding Gage (Model No. HVO-GG-4839-1)

Measurement

Range

Graduation

Accuracy

Bevel on end Preparation
Pipe Wall Thickness
Internal Misalignment
Fit-Up Gap
Crown Height
Distance between two marking lines of socket weld
Fillet Weld Length
Fillet Weld Height

37.5°
0-45mm (0~1-3/4”)
0-35mm (0~1-3/8”)
1.6mm, 2.4mm
0-35mm (0~1-3/8”)
0-60mm (0~2-3/8”)

0-30mm (0~1-1/4”)
0-35mm (0~1-3/8”)

-
1mm (1/16”)
1mm (1/32”)
-
1mm (1/32”)
1mm (1/16”)

1mm (1/16”)
1mm (1/31”)

±1°
±0.5mm
±0.5mm
±0.1mm
±0.5mm
±0.5mm

±0.5mm
±0.5mm
