Pitot Static Tube Set-Up
Description

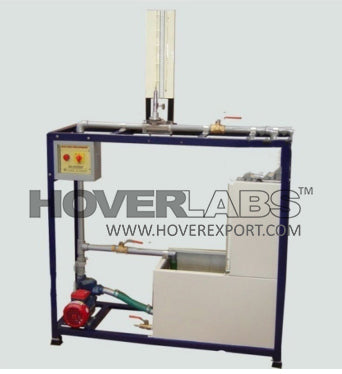

A Pitot tube is used to measure the local velocity at a given point in the flow stress. A pitot tube of standard design made of copper/SS is supplied and is fixed below Vernier scale. The Vernier scale is capable to measure the position of Pitot Tube in transparent pipe section. The pipe has a flow control valve to regulate the flow. A U-tube manometer is provided to determine the velocity head.
Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.
Experiments
- To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube.
- To plot velocity profile across the cross section of pipe
Features
- Acrylic test section
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electric supply 0.5 kW, 220V AC, Single Phase
- Water supply Tap water connection ½” BSP
Distilled water @ 60 liters (optional)
- Floor Area with Drain facility
Technical Specification
|
Pitot Tube |
Material Copper/SS of compatible size fitted with Vernier scale. |
|
Test Section |
Material Clear Acrylic, compatible to 1" Dia. Pipe. |
|
Water Circulation |
FHP capacity make Crompton / Kirloskar |
|
Flow Measurement |
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale |
|
Sump Tank |
Capacity 50 Ltrs. MOC SS |
|
Piping |
MOC GI and PVC |
|
Stop Watch |
Electronic |
|
Control Panel |
On/Off Switch, Mains Indicator, etc |
|
Overall Dimensions |
(L x B x H) 1200 x 420 x 1200 mm |
Experiments
- To find the point velocity at the center of a tube for different flow rates of water and calibrate the Pitot tube.
- To plot velocity profile across the cross section of pipe
Features
- Acrylic test section
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electric supply 0.5 kW, 220V AC, Single Phase
- Water supply Tap water connection ½” BSP
Distilled water @ 60 liters (optional)
- Floor Area with Drain facility
