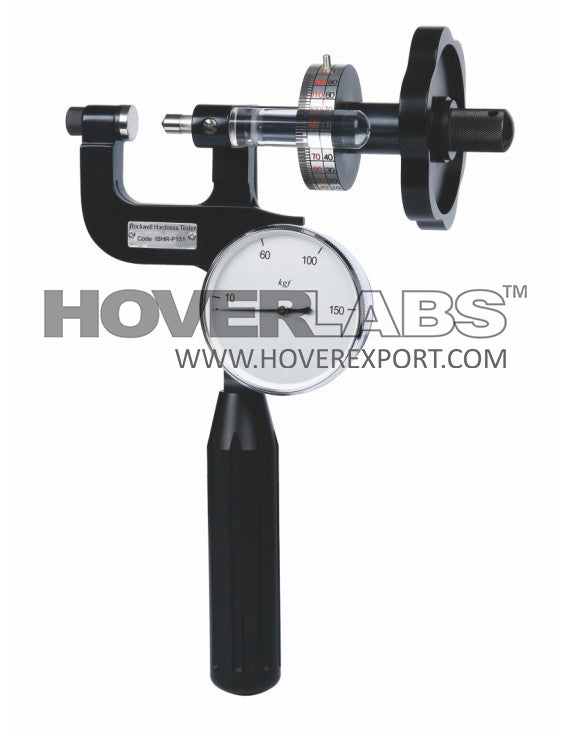

Portable Rockwell Hardness Tester (Model No. HVO-ISHR-P151)
Portable Rockwell Hardness Tester
Specification:
- Hardness scale: HRA, HRB, HRC, HRD, HRF, HRG.
- Preliminary test force: 10kg
- Test force: 60kg, 100kg, 150kg
- Load control: Manual
- Min. Reading: 1HR
- Max. Workpiece thickness: 25mm
- Max. testing width: 25mm (from the center of indenter to the main body)
- Dimension: 240x70x160mm
- Weight: 2.5kg
- .
-
Applicable Workpiece:
Minimum weight: 5kg (direct measurement), 2kg (on soil support), 0.05kg (coupled on plate)
Minimum thickness: 5mm
Minimum radius of curved surface: 30mm
Maximum roughness(Ra): 2μm
-
Power supply: 1xAAAbattery
- Dimension: 148x45x21mm
- Weight: 105g
Standard Delivery:
- Main Unit: 1Pc
- Diamond Indenter: 1Pc
- Ø1.5875mm carbide ball indenter: 2Pcs
- Hardness test block HRB88-95: 1Pc
- Hardness test block HRB60-65: 1Pc
- Hardness test block HRB20-30: 1Pc
- Flat anvil: 1Pc
- V-type anvil: 1Pc
- Base: 1Pc
- Anvil extension: 1Pc
- Magnifier: 2Pcs
Features:
- According to ISO 6508, ASTM E18
