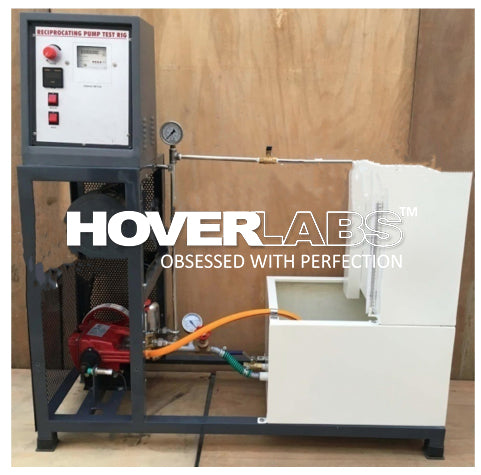

Reciprocating Pump Test RIG
Description
The setup is designed to study the performance of reciprocating pump multi stage.
Set up consists of a 3-stage reciprocating pump coupled with electrical motor, supply tank, measuring tank & pipe fittings for closed loop water circulation. Pressure and Vacuum gauges are connected on delivery and suction side of pump for the purpose of measurement.
The flow rate of water is measured using measuring tank and stop watch provided.
Experiments
- To determine overall efficiency and pump efficiency of the reciprocating pump.
- To plot Head vs. Discharge, Pump efficiency vs. Discharge
Features
- Closed loop water circulation
- Compact & stand alone set up
- Stainless Steel tanks and wetted parts
- Superb Painted structure
- Simple to operate & maintain
Utilities Required
- Electric supply Provide 230 +/- 10 VAC, 50Hz, single phase.
- Water supply Tap water connection ½” BSP
Distilled water @ 100 liters (optional)
- Floor Area with drain facility
Technical Specification
|
Pump |
Double acting, Single Cylinder Capacity 1 HP, Speed 250 RPM (max.), Head 5kg/cm2 (max.) |
|
Drive |
HM 04 DC : DC motor with DC drive for variable speed |
|
Supply Tank |
Capacity 50 Ltrs. MOC SS |
|
Measuring Tank |
Capacity 30 Ltrs. MOC SS fitted with Piezometer Tube & scale |
|
Pressure Gauge |
Bourdon Type |
|
Piping |
GI / PVC |
|
Stop Watch |
Electronic |
|
Control Panel |
With required electrical instrumentation RPM Indicator with Proximity Sensor Electronic Energy Meter On /Off switch Main indicator etc. |
