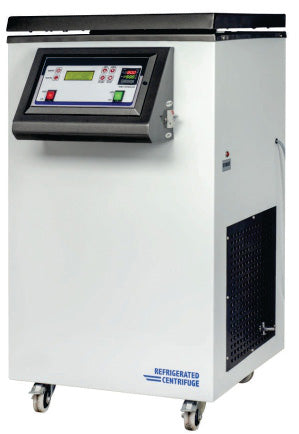

REFRIGERATED CENTRIFUGE FLOOR MODEL (Model: HVL-100-L)

REFRIGERATED CENTRIFUGE FLOOR MODEL (Model: HVL-100-L)

Technical Specifications:

- (PLC Based with Touch Screen. Digital - 20000 rpm)

- Floor Model Multipurpose High Speed and High Volume Refrigerated Centrifuge Machine

- Heavy duty C.R.C. construction finished with powder coating

- Stainless Steel centrifugal bowl for extra protection and easy cleaning.

- Fitted with well-balanced brushless motor with electronic drive.

- Fitted with latest technology PLC based with touch screen to display set & run time, set & run rpm, rcf.

- Digital Timer 1-99 minutes with an interval of 1 min.

- Dynamic brake (automatic) and imbalance detector are provided.

- Selection of acceleration and deceleration profile & 50 programms can be stored.

- Programmable Speed controller from 2000 to 20000 in interval of 100 rpm

- Having a function of automatic rotor identification and short spin.

-  P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge temp. from room temp. upto -20°C means shuts off the cooling compressor within accuracy of + 2°C.

- Supply completed with, instruction manual, cord & plug to work on 220 volts 50Hz A.C.

Technical Parameter:

- Max. Speed 20000 R.P.M.

- Max. RCF 37570xg

- Timer 1-99 Min.

- Motor Brushless Motor

- Temp. Range from room temperature- to -20°C

- Temp. Accuracy ±2°C

- Power AC 220V 50 Hz 20A

- Weight 90 kg. Approx.

- Dimension L-40” x W-29” x H-23” approx.

INTERNAL CODE: - KD. 12-1-2-25-9-14-4-9-1
