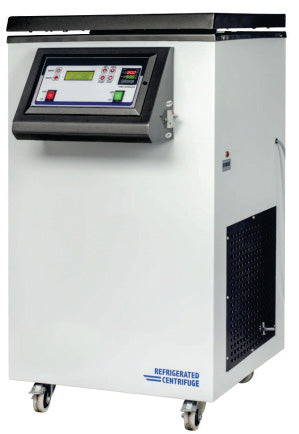

REFRIGERATED CENTRIFUGE FLOOR MODEL (Model: HVL-120-L)

REFRIGERATED CENTRIFUGE FLOOR MODEL (Model: HVL-120-L)

Technical Specifications:

- (Micro Processor Based Brushless - 8000 rpm)

- Floor Model Multipurpose High Speed and High Volume Refrigerated Centrifuge Machine

- Heavy duty C.R.C. construction finished with powder coating

- Stainless Steel centrifugal bowl for extra protection and easy cleaning.

- Fitted with well-balanced brushless motor with electronic drive.

- 4 lines, 20 characters LCD Display for set & run time, set & run rpm, rcf.

-  Digital Timer 1-99 minutes with an interval of 1 min.

- Dynamic brake (automatic) and imbalance detector are provided.

- Selection of 3 acceleration and 3 deceleration profile.

- Programmable Speed controller from 2000 to 8000 in interval of 100 rpm

- RPM/RCF auto calculating.

- P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge temp. from room temp. upto -10°C means shuts off the cooling compressor within accuracy of + 2°C.

- Supply completed with, instruction manual, cord & plug to work on 220 volts 50Hz A.C.

Technical Parameter:

- Max. Speed 8000 R.P.M.

- Max. RCF 6350xg

- Timer 1-99 Min.

- Motor Brushless Motor

- Temp. Range from room temperature- to -10°C

- Temp. Accuracy ±2°C

- Power AC 220V 50 Hz 20A

- Weight 90 kg. Approx.

- Dimension L-40” x W-29” x H-23” approx.

INTERNAL CODE: - KD. 12-1-2-25-9-14-4-9-1
