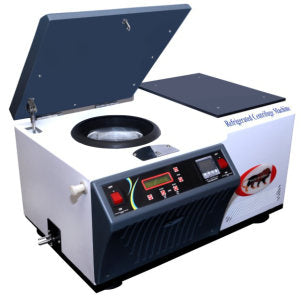

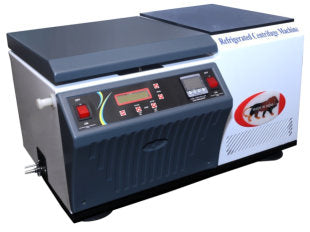

Refrigerated Micro Centrifuge (Model: HVL-40)

Refrigerated Micro Centrifuge (Model: HVL-40)

Technical Specifications:

- Digital-16000 R.P.M. (Microprocessor Based)

- Temp. -10°C

- Bench Top Refrigerated Micro Centrifuge Machine

- Heavy duty C.R.C. construction finished with powder coating

- Stainless Steel centrifugal bowl for extra protection and easy cleaning.

- Fitted with well-balanced universal motor with having carbon brushes.

- CRC free refrigeration.

- 2 lines, 20 characters. LCD Display for set time, run time set and run rpm, rcf.

- Digital Timer 1-99 minutes

- Programmable Speed Regulator from 2000 to 16000 rpm in variation of 100 rpm.

- Safety lid lock.

- P.I.D. Electronic digital temperature controller cum indicator is fitted to control the temperature of centrifuge bowl from room temp. upto -10°C and shuts off the cooling compressor within accuracy of ± 1°C in standby mode. Means only the centrifuge bowl is cooling and centrifuge motor is in standby mode.

- Temperature Accuracy when motor is also running is +2°C

Technical Parameter

▸ Mxs Speed:16000 RPM

▸ Max RCF:16800 x g

▸ Motor: Universal Motor (with carbon brushes)

▸ Power: AC 220V 50 Hz 20A

▸ Weight:54 kg Approx

▸ Dimensions: L-26" x W - 19" x H - 14.5" approx.

Supply complete with following angle rotor heads to accommodate polypropylene micro-Centrifuge tubes (eppendorf Tubes as well)

▸ Rotor Type: Angle Rotor

▸ Rotor Capacity: 12 x 1.5/2 ml.

▸ Speed on Rotor (RPM):16000

▸ R.C.F.: 16800 x g

▸ Adopters to accept 0.5ml & 0.2ml Eppendrof micro-centrifuge tubes.
