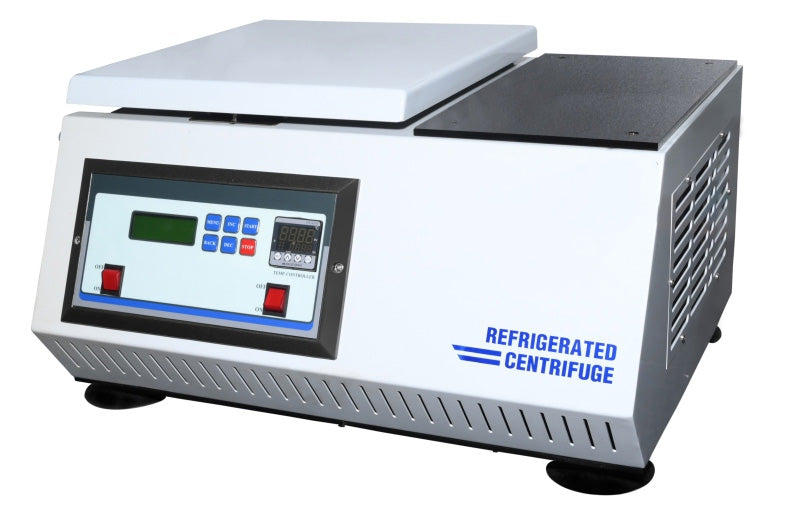

Refrigerated Micro Centrifuge (Model: HVL-55-L)

Refrigerated Micro Centrifuge (Model: HVL-55-L)

Technical Specifications:

- Digital-20000 R.P.M. (Brushless Motor)

- Bench Top high speed Refrigerated Micro Centrifuge Machine

- Heavy duty C.R.C. construction finished with powder coating

- Stainless Steel centrifugal bowl for extra protection and easy cleaning.

- Fitted with well-balanced brushless motor with electronic drive.

- 4 lines, 20 characters. LCD Display for set time, run time, set and run rpm, rcf and rotor identification.

- Digital Timer 0-99 minutes, lid lock and fast spin option

- Dynamic brake (automatic) and imbalance detector are provided.

- Selection of 3 acceleration + 4 deceleration profile.

- Microprocessor based. Programmable Speed Regulator from 2000 to 20000 in interval of 100 rpm

- Last test parameter recall and displays automatically on LCD

-  P.I.D. Electronic digital temperature controller cum indicator is fitted to control the centrifuge temp. from room temp. upto -20°C means shuts off the cooling compressor within accuracy of +2°C.

- Supply completed with, instruction manual, cord & plug to work on 220 volts 50Hz A.C.

Technical Parameter

▸ Max. Speed:20000 R.P.M.

▸ Max. RCF:23000xg

▸ Timer:0-99 Min.

▸ Motor:Brushless Motor

▸ Temp. Range:from room temperature- to -20°C

▸ Temp. Accuracy: +2°C (at 20000 rpm upto 5-minute operation of centrifuge)

▸ Power: AC 220V 50 Hz 20A

▸ Weight:55 kg. Approx.

▸ Dimension: L-25" x W-20" x H-14" approx.

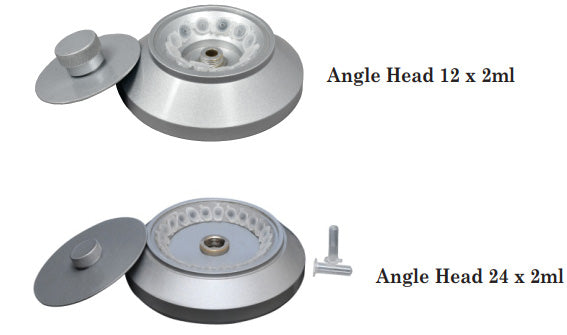

- Rotor Type:Angle Rotor

- Rotor Capacity:12 x 1.5/2.2 ml.

- Speed on Rotor (RPM):20000

- R.C.F.: 23000 xg

- Rotor Type:Angle Rotor

- Rotor Capacity:24 x 1.5/2.2 ml.

- Speed on Rotor (RPM):16000

- R.C.F.: 18000 xg
