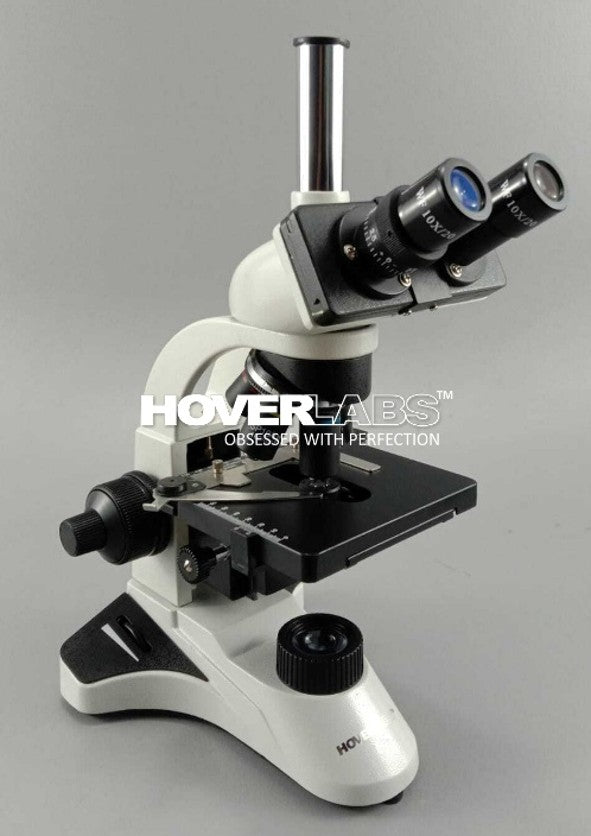

RESEARCH MICROSCOPE WITH SEMI PLAN ACHROMAT OBJECTIVES
(Model: HV-20TR)
Technical Specification: -
- Optical System: Finite Optical System. All Optics Are Be Made Of High Quality Glasses and Anti-Fungal Coated.
- Stand: U Shaped Stand with Well-Contoured Modular Base, Ergonomic Easy-to-use Microscope Have Specifically Been Designed for Laboratory and University Applications Window in the Arm Section to Observe the Specimen with Naked Eye. Ergonomic Carrying Grip Enables Easy Transportation.
- Viewing Head Binocular/Trinocular Inclined Tube, Inclined At 45° Rotatable Through 360° With IPD 50-75 Mm and One Side Dioptric Adjustment. Anti Fungus Treated
- Eyepieces Wide Field Eyepiece Paired WF 10x
- Nosepiece Reverse Parfocal Quadruple Revolving Nosepiece (Ball Bearing Type).
- Objectives: DIN Semi Plan Achromatic, Anti Fungus Treated Objectives 4x/ 0.10, 10x/ 0.25, 40x (Spring Loaded)/ 0.65, 100x (Spring Loaded, Oil)/ 1.25 All Objectives Are Parfocal and Precentered to Minimize Refocusing
- Stage: Double Layer Graduated Mechanical Rectangular Stage Size 132 X 142mm Cross Travel 75 (X) X 40 (Y) Mm on Ball Bearing Co-Axial Controls, Spring Clip Stage Focus Stop Adjustable Through Focus Locking Screw.
- Condensor: Moveable ABBE Condenser, NA 1.25 With Aspheric Lens Iris Diaphragm with Swing Our Filter Holder.
- Illumination Built in Bright White Led, With Intensity Control Regulator
- Power Power Input 220v Ac 50/60hz
Internal Code: - KD.3099.260331
