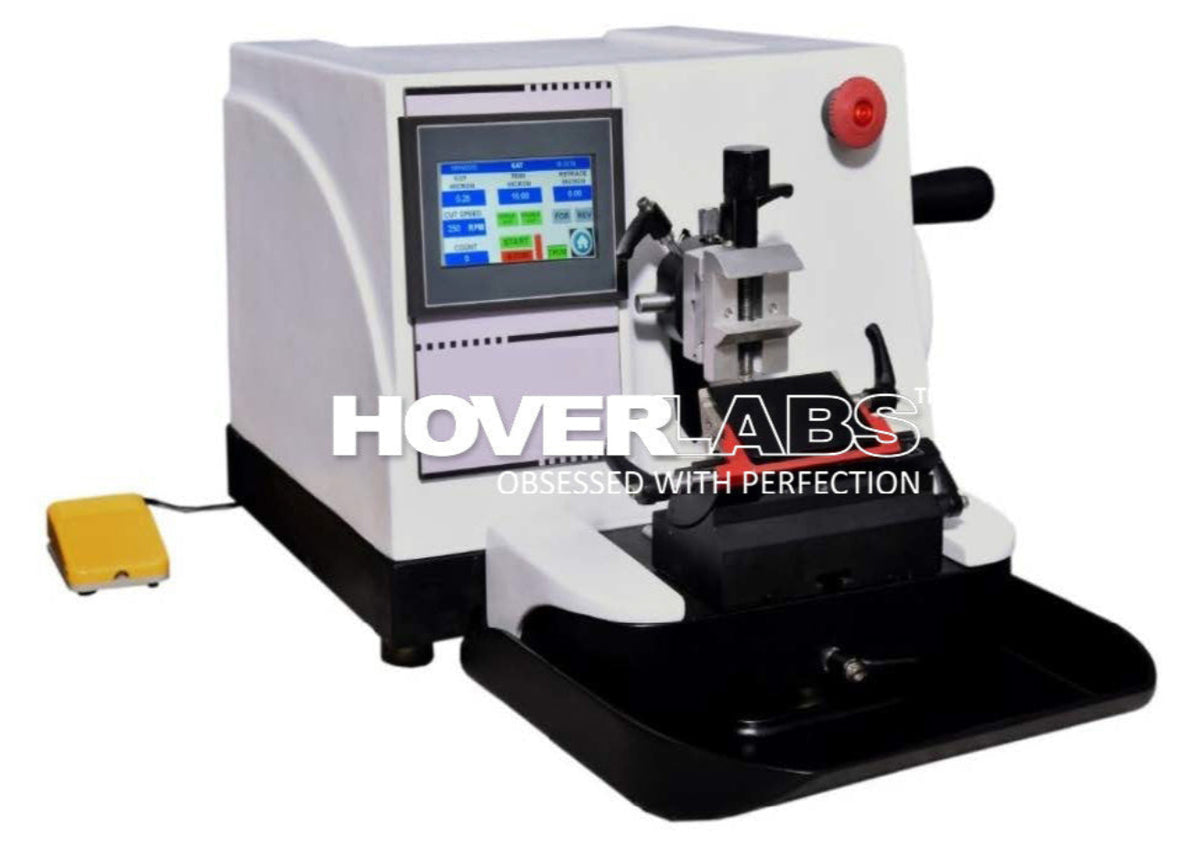

AUTOMATIC ROTARY MICROTOME WITH TOUCH SCREEN INTERFACE (Model: HV-FAM-T-17)

AUTOMATIC ROTARY MICROTOME

WITH TOUCH SCREEN INTERFACE

Model: HV-FAM-T-17

SALIENT FEATURES: -

Þ Removable Section Waste Tray

Þ Motorized Sectioning Facilities

Þ Touch Screen Display

Þ Advance Drive Systems and Multiple Functions Including Sectioning, Trimming, Fast Forward, Fast Backward.

 TECHNICAL SPECIFICATIONS: -

· Section thickness setting range: 0.25um-100um 0.25um-2um in increment .25um and 2um-5um in increment 0.5um and 5um-10um in increment 1um and 10um-30um in increments 2um and 30um-60um in increment 5um and 60um-100um increment 10um

· Trimming thickness setting range:1-600um 1-10um increment 1um, 010-020um increment 2um, 020-050um increment 05um-150um increment 10um 150 600uum

increment 50um

· Retraction setting range:0-50 in step off 1um

· Horizontal feed-25mm

· Vertical specimen stroke 70mm

· Specimen holder rotation at angle within 360°

· Movement range of the base of specimen holder 65mm (front to back)

· Specimen clamp rotation at any angle within 360°

· Specimen orientation XY-8°

· Minimum setting of sectioning thickness 0.25μm

· Maximum specimen size 70x70mm

· Precision error 1%

· Working voltage AC 220V±10% 50Hz (standard model) AC 110V-10% 60Hz

· Power 150W

Internal Code: - KD.8520.230810
