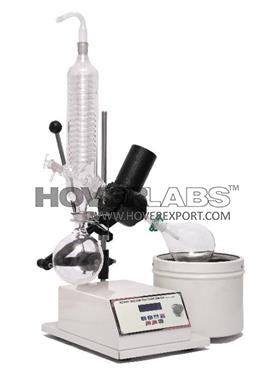

Rotary Vacuum Evaporator (MODEL NO. HV-RV-160B)

Rotary Vacuum Evaporator

(MODEL NO. HV-RV-160B)

Technical Specification: -

GLASSWARE

· Condenser type: Vertical

· Cooling surface: 1500 cm2

· Evaporating Flask: 100 ml to 2000 ml

· Receiving Flask: Max 1000 ml

GENERAL

· Motor principle: DC

· Speed range: 20 -200 rpm

· RPM Display: LED

· Lift: Motorised

· Stroke: 150 mm

· Lift Speed: 6 mm/sec

· Voltage: 220 - 240 V.

· Frequency: 50 Hz WATER BATH

· Temperature Controller: Digital (PID)

· Heating temperature range: Ambient + 5°C -180 °C

· Heat output: 1250 W

· Temperature Uniformity: ±1 °C

· Filling volume max.: 3.5 L

· Inner Body: Stainless Steel 304 Grade

· Outer Body: Aluminium Powder Coated SIZE & WEIGHT

· Dimensions (L x W x H): 940 x 510 x 560 mm

· Weight: 31 kg

OPERATING CONDITIONS

· Permissible ambient temperature: 5 -40°C

· Permissible relative humidity: 80 %

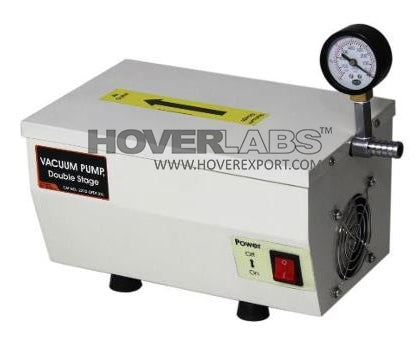

· IP Rating: IP 20 Complete with oil free Vacuum Pump, Piston,

Glassware and Chiller.

INTERNAL CODE: - KD.25610
