Product details

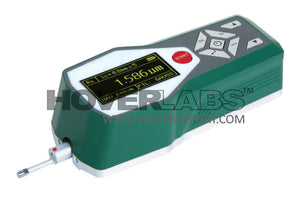

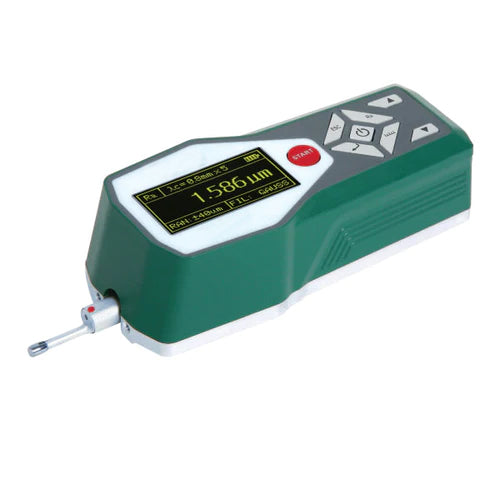

Roughness Tester
Specification:
-
Parameters: Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz(RIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS), Rmax
- Range: 320µm (-160µm~160µm)
- Accuracy: ±10%
- Resolution (Ra): 0.001µm
- Probe type: inductive
- Probe Stylus radius/ angle: 5µm/90 °
- Probe stylus material: diamond
- Measuring force: 4mN
- Measuring unit: µm/µin
- Cut off: 0.25/0.8/2.5mm
- Numbers of cut-offs: 1-5
- Moving speed: 0.5mm/s, 1mm/s
- Memory: 100 measurement results
- Output: USB and Bluetooth
- Power: built-in rechargeable results
- Dimension(L×W×H): 141x55x40mm
- Weight: 400g
Features:
- Roughness tester can be operated by mobile phones (only Android system) or computers
- Data can be sent to Excel by connecting to computers via Bluetooth or SPC cable
- Support Bluetooth printer
- 21 roughness parameters
- Display roughness value, profile and curve
- Memory of maximum 100 results
- Automatic power off
Standard Delivery:
- Main Unit: 1Pc
-
Standard Probe: 1Pc
- Calibration block and support: 1Pc of each
- Adjustable Stand: 1Pc
- Probe Cover: 1Pc
- Software and USB Cable
- AC/DC Adapter: 1Pc
