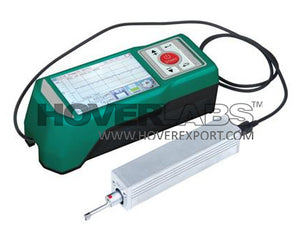

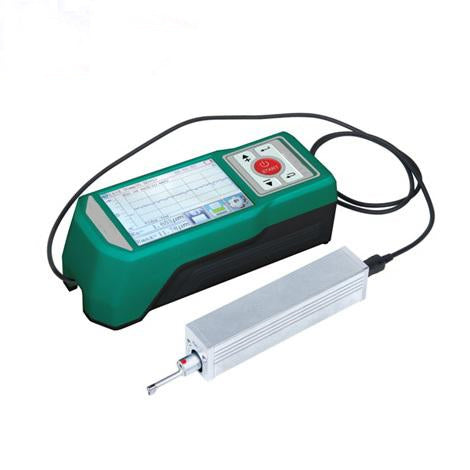

Roughness Tester (Separable Type) (Model No. HVO-ISR-C300)

Roughness Tester (Separable Type)

Specification:

• Parameters:  Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz(RIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

• Range:

• Accuracy: ±10%
• Resolution (Ra): 0.001µm
• Probe type: inductive
• Probe Stylus radius/ angle: 5µm/90 °
• Probe stylus material: diamond
• Measuring force: 4mN
• Measuring unit: µm/µin
• Cut off: 0.25/0.8/2.5mm
• Numbers of cut-offs: 1-5
• Moving speed: 0.135mm/s, 0.5mm/s, 1mm/s
• Memory: 100 measurement results
• Output: USB and Bluetooth
• Power: built-in rechargeable results
• Dimension(L×W×H): 158x64x52mm
• Weight: 400g

Features:

• Roughness tester can be operated by mobile phones (only Android system) or computers
• Data can be sent to Excel by connecting to computers via Bluetooth or SPC cable
• Support Bluetooth printer

• 21 roughness parameters
• Meet ISO, DIN, ANSI, JIS Standards
• Display roughness value, profile and curve
• Memory of maximum 100 data and waveform

• Touch Screen
• Automatic Power off

Standard Delivery:

• Main Unit: 1Pc
• Standard Probe: 1Pc

• Calibration block and support: 1Pc of each
• Connecting Cable (long and short): 1Pc of each
• Magnetic Stand Adapter: 1Pc
• Adjustable Stand: 1Pc
• Touch Pen: 1Pc
• Software and USB Cable
• AC/DC Adapter: 1Pc
