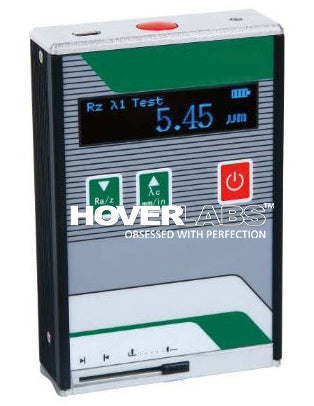

Roughness Tester (Basic Type) (Model No. HVO-ISR-C003)
Roughness Tester (Basic Type)
Specification:
-
Parameters: Ra, Rz, Rq, Rt
- Range:
Ra, Rq: 0.05~15µm
Rz, Rt: 0.1µm~50µm
- Accuracy: ±10%
- Resolution (Ra): 0.01µm
- Probe type: Piezoelectric
- Probe Stylus radius/ angle: 10µm/90 °
- Probe stylus material: diamond
- Measuring force: 5mN
- Measuring unit: µm/µin
- Cut off: 0.25/0.8/2.5mm
- Numbers of cut-offs: 1-5
- Evaluation Length:
1.25mm for cut off 0.25mm
4mm for cut off 0.8mm
5mm for cut off 2.5mm
- Moving speed: 0.75mm/s
-
Power: built-in rechargeable results
- Dimension(L×W×H): 106x70x24mm
- Weight: 200g
Features:
- Unit: µm, µin
- Automatic power off
Standard Delivery:
- Main Unit: 1Pc
-
Calibration Block: 1Pc
-
AC/DC Adapter: 1Pc
