Sedimentation Tank

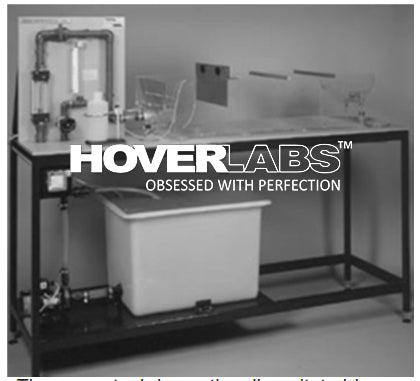

This unit has been designed to demonstrate the hydraulic characteristics and settling efficiencies of a model settling basin. Although scale-up to industrial size sedimentation tanks is difficult, relevant deductions can be made as to how non-uniform flows occur and how these interact with the settling characteristics of particular suspensions.
Description
Water is taken from the laboratory mains supply and is fed to the settling tank via a flow meter. For studies of sedimentation, slurry is prepared in a sump tank and pumped via a specially designed flow meter to join the fresh water stream just before entry to the settling tank. Well-mixed slurry of known concentration and flow enters the tank uniformly under an inlet weir. This may be comparatively analyzed by drying and weighing. The sump tank is continually agitated by a flow sparge device to prevent settling of solids during an experiment. For hydraulic tracer and visualization studies, an accurate dye injection system is provided. A known volume of dye solution is injected just before the entry to the settling tank.
Demonstration Capabilities
- Measuring flow short-circuiting and dead space using a tracer

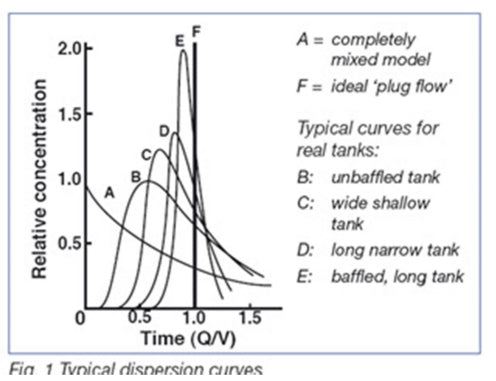

- Comparison of real flow regimes with idealized flow models (fig. 1)
- Effect of flow rate and baffle position on dispersion
- Measuring sediment removal efficiencies and relating these to the hydraulic characteristics.
Utilities Required
- Electrical supply: 220-240V/1ph/50Hz
- Water supply: 5 litres/min @ 1 bar
Technical Specification
|
Settling tank |
1000 x 400 x 200mm |
|
Sediment Sump |
Tank Capacity: 120 litres |
|
Water flow meter |
Range: 0.5-5 l/min |
|
Sediment Suspension |
flow meter range: 0-2 l/min |
|
Pump flow rate: |
25 l/min at 5m head |
|
Motor: |
0.1kW |
|
Overall dimensions (Approx) |
Height: 1.55m Width: 1.90m Depth: 0.60m |
|
Weight and Volume (Approx) |
Volume: 2.9m3 Gross weight: 310kg |
Accessories
- Sedimentation Studies Apparatus (W2) to characterize settling regimes of selected suspension
- Precipitated calcium carbonate
- Balances
Colorimeter - 7 narrow band-pass filters covering wavelengths 450 to 700mm
