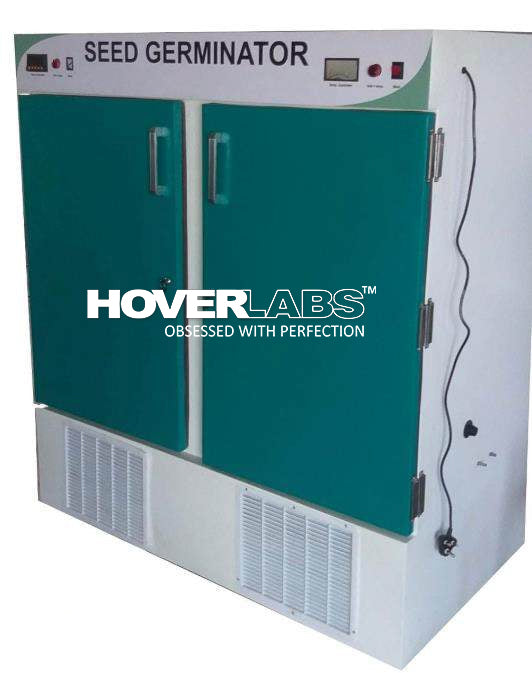

SEED GERMINATOR (DOUBLE DOOR) (MODEL NO. HV- 1107A)

SEED GERMINATOR (DOUBLE DOOR)

(MODEL NO. HV- 1107A)

The Seed Germinator Double Chamber is an advanced equipment solution for controlled germination and growth of seeds, providing precise management of temperature and humidity conditions. Designed for reliability, efficiency, and ease of use, this unit features dual chambers with independent controls for optimum seed growth conditions. With a robust construction and energy-efficient design, it is an ideal choice for laboratories, research centers, and agricultural operations focused on seed development.

Most Suitable for conducting various experiments on variety of seeds under different conditions of temperature & humidity. Atmospheric conditions are created within the chamber to perform different experiments without going on to the field. The double walled unit has inner chamber made of Stainless Steel and Outer of Mild Steel duly powder coated. Temperature from 5° C to 60° C is controlled by Dual Display Microprocessor PID Digital Temperature Indicator cum Controller. Humidity (Not Adjustable) is created in SS reservoirs fitted at the bottom to provide 10% to 98% RH. Supplied complete with trays & with Lighting arrangement.

TECHNICAL SPECIFICATIONS: -

Temperature Range: 5°C to 60°C Complies with the requirement for precise and adjustable temperature control suitable for seed germination

Temperature Sensor: PT-100 Ensures accurate temperature measurement with high reliability.

Temperature Controller: PLC Controller with HMI Allows intuitive control with user-friendly interface and precise adjustment of temperature settings.

Temperature Fluctuation: ±0.5°C max Meets industry standards for minimal temperature fluctuation, ensuring consistent environment for seed germination.

Temperature Precision: 0.1°C High precision allows for strict temperature control, which is essential for optimal seed growth conditions.

Temperature Uniformity: 1°C Ensures uniform temperature distribution within each chamber for uniform seed germination.

Relative Humidity Range: 10% RH to 98% RH Broad humidity range allows for control of various seed types that require different humidity levels for germination

Humidity Sensor: Capacitance type sensor

Humidity Control: Microprocessor-based Advanced microprocessor ensures stable and efficient control of humidity within both chambers.

Humidity Supply: Natural humidity with water inside and an external water tank

Independent Control: Independent temperature and humidity control for each chamber

INTERNAL CODE: - KD.25614
